828549-2 | AMP
Pin header, 2 pole, pitch 2.54 mm, angled, ivory, 828549-2
Unit Price (€ / pc.)
0.2737 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
0.27 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2737 €
50 pcs.
0.2487 €
200 pcs.
0.2237 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin headers, type TE Connectivity/AMP.

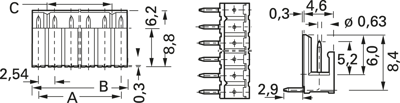

With 2.54 mm grid, for PCB mounting. Corresponding AMP-Quick socket headers; Housing: polyester GV, compliant with UL 94 V-0. Color: ivory. Contacts: CuSn. Version: 2.5 µ tinned or 0.8 µ gold-plating on nickel primer. Insertion frequency tinned/gold-plated: 25/250 cycles. Rated current: max. 3.0 A. Operating voltage: max. 125 V. Operating temperatures: –40 to +85 °C. Dimension calculation: dimension A: (number of poles - 1) x 2.54 mm, dimension B: A + 2.04 mm, dimension C as from 3 poles: (number of poles - 2) x 2.54 mm.
Angled, tinned, type 0-0828.
Type: 0-0828549-2, 2-pole
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | ivory | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated current | 3 A | |
| Orientation | angled | |
| Pin number | 2 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
