87220-3 | AMP

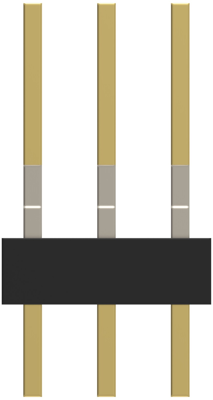

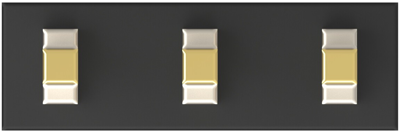

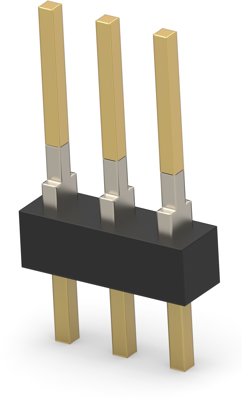

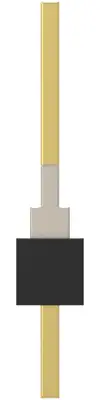

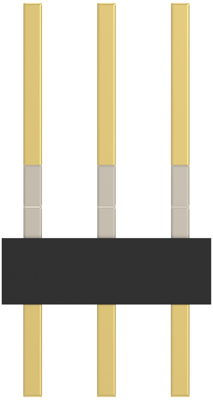

Pin header, 3 pole, pitch 2.54 mm, straight, black, 87220-3
Unit Price (€ / pc.)
2.6418 € *
Available: 0 pcs.
Available in 5 Days: 9,595 pcs.
Leadtime: 27 Weeks **
PCB Connection System, 87220-3, AMP
Board-to-Board, Printed Circuit Board, Unshrouded, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -65 – 105 °C
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | vergoldet | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennstrom | 3 A | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
