9-188275-0 | AMP

Socket header, 20 pole, pitch 1.27 mm, straight, red, 9-188275-0

Order No.: 58F716
EAN: 4099891004415
MPN:
9-188275-0
9-0188275-0
Series: Micro-MaTch
AMP

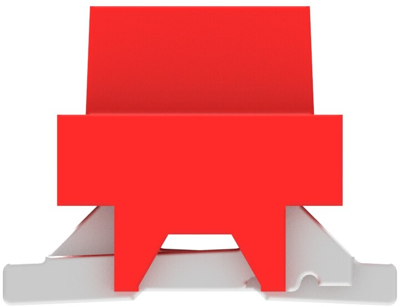

9-188275-0 AMP PCB Connection Systems Image 1

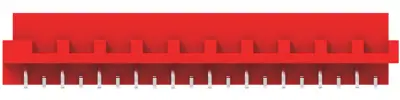

9-188275-0 AMP PCB Connection Systems Image 2

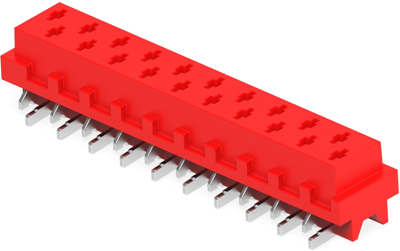

9-188275-0 AMP PCB Connection Systems Image 3

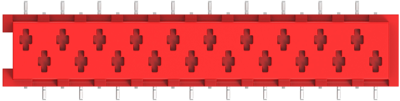

9-188275-0 AMP PCB Connection Systems Image 4

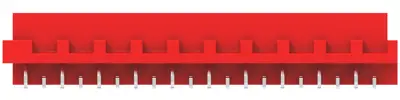

9-188275-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.7719 € *
Available: 1,528 pcs.
Leadtime: 25 Weeks **
Total Price:
4.77 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7719 €
10 pcs.
4.2007 €
100 pcs.
3.6890 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Federleisten gerade für SMD-Montage.

Verpackung mit Ansaughaube für pick and place, Reflowlöten geeigent; Tabellenangaben: Typ, Polzahl, Maß B.

Type: 9-0188275-0, 20-polig, B 27,4 mm

Technical specifications
Connection SMD
Connection plating tin-plated
Number of rows 2
Version socket header
Additional parts equipped
Colour red
Contact type socket
contact surface tin-plated
Rated voltage 100 V
Rated current 1.5 A
Orientation straight
Pin number 20 pole
Grid 1.27 mm
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
