9-215460-0 | AMP

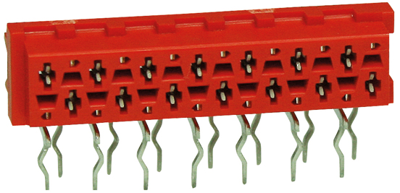

Socket header, 20 pole, pitch 1.27 mm, angled, red, 9-215460-0
Unit Price (€ / pc.)
2.0349 € *
Available: 190 pcs.
Available in 5 Days: 3,500 pcs.
Leadtime: 24 Weeks **
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Sub-D PCB female connectors, angled, type ..-0215460.
For PCB mounting.

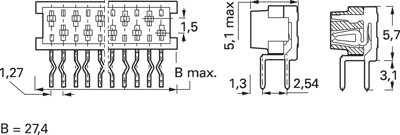

Technical attributes (type, number of poles, dimension B): 9-0215460-0, 20-pole, 27.4 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Orientation | abgewinkelt | |
| Pin number | 20-polig | |
| Grid | 1.27 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
