925076-3 | AMP

Plug housing, 4 pole, pitch 5.08 mm, straight, black, 925076-3

Order No.: 34P6638
EAN: 4099889912746
MPN:
925076-3

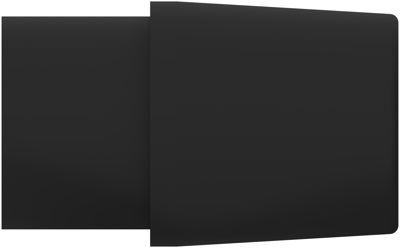

925076-3 AMP PCB Connection Systems Image 1

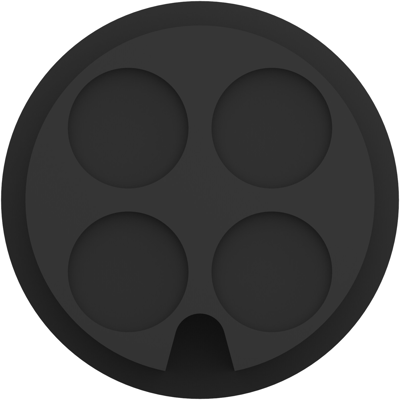

925076-3 AMP PCB Connection Systems Image 2

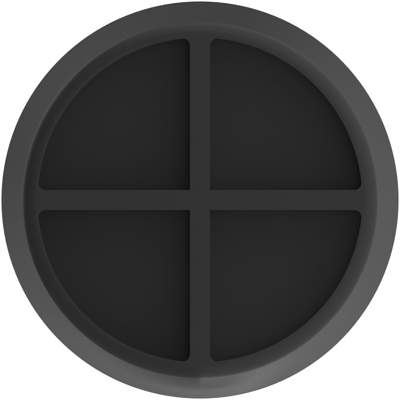

925076-3 AMP PCB Connection Systems Image 3

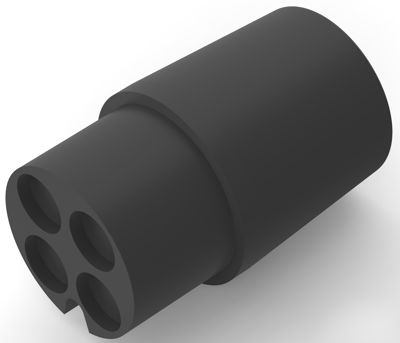

925076-3 AMP PCB Connection Systems Image 4

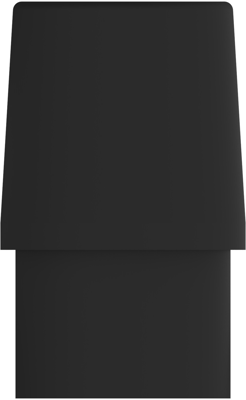

925076-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 925076-3, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: PA 66
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 5.08 mm
  • Row-to-Row Spacing: 5.08 mm [0.2 in]
  • Sealable: No
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe schwarz
Kontaktart Buchse
Nennspannung 250 V
Nennstrom 1.3 A
Orientierung gerade
Polzahl 4-polig
Rastermaß 5.08 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
