925370-7 | AMP

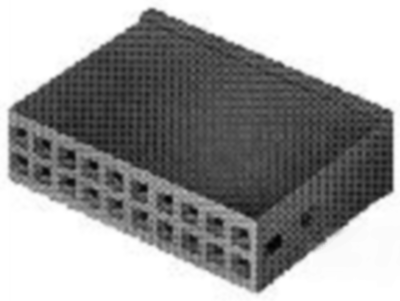

Socket housing, 14 pole, pitch 2.54 mm, straight, green, 925370-7
Unit Price (€ / pc.)
2.6418 € *
Available: 49 pcs.
Leadtime: 9 Weeks **
Total Price:
2.64 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6418 €
10 pcs.
2.4514 €
50 pcs.
2.2491 €
100 pcs.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale
Bare socket headers, type TE Connectivity/AMP Modu IV.
With 2.54 mm grid, single-row or dual-row, optionally available with or without interlock. The required crimp female contacts are available on separate order. The number of contacts can be reduced as required.
Dual-row with interlock, type ..-0925.
Type: 0-0925370-7, 2 x 7-pole
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Colour | green | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 14 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
