926305-6 | AMP

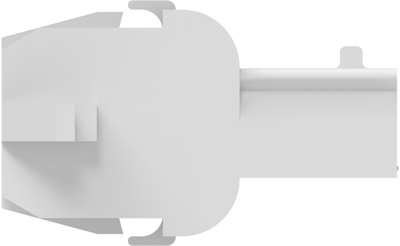

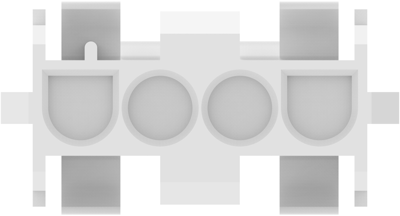

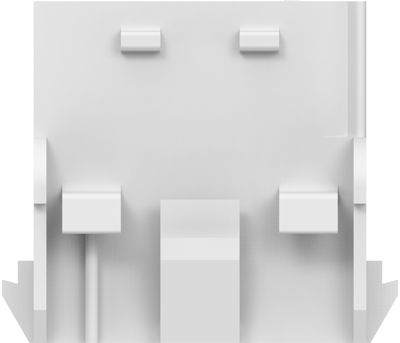

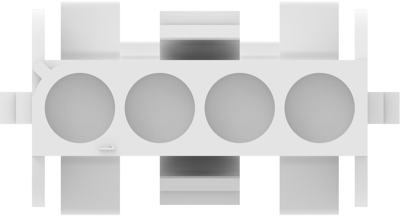

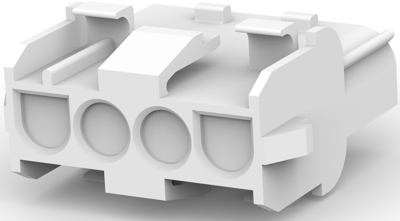

Socket housing, 4 pole, pitch 6.35 mm, straight, natural, 926305-6
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
PCB Connection System, 926305-6, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 6
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 6.35 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
