969973-4 | AMP

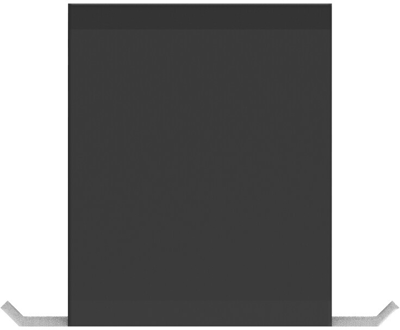

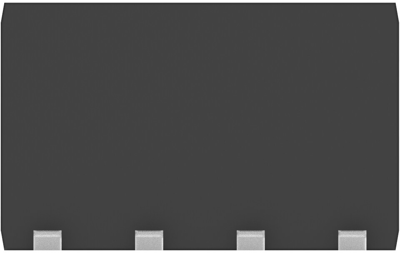

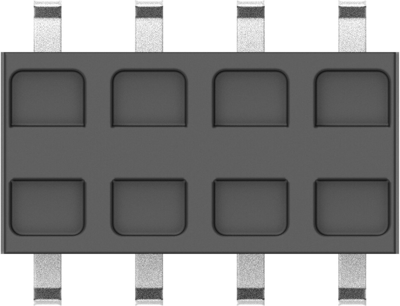

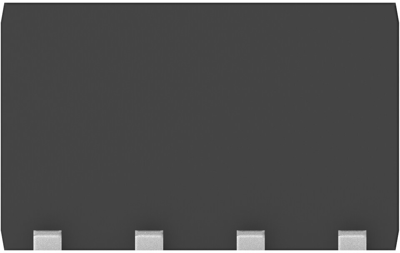

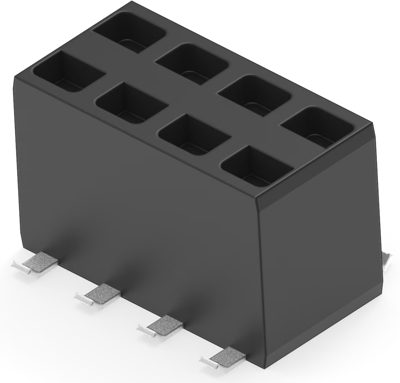

Socket housing, 8 pole, pitch 2.54 mm, straight, black, 969973-4
Unit Price (€ / pc.)
2.9869 € *
Available: 0 pcs.
Leadtime: 37 Weeks **
PCB Connection System, 969973-4, AMP
Board-to-Board, Printed Circuit Board, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | socket housing | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
