1-160304-2 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 2.5 mm², AWG 17 to 14, brass, tin-plated, 1-160304-2
Unit Price (€ / pc.)
0.5117 € *
Available: 1,183 pcs.
Leadtime: 2 Weeks **
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5117 €
50 pcs.
0.4522 €
200 pcs.
0.4165 €
500 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale

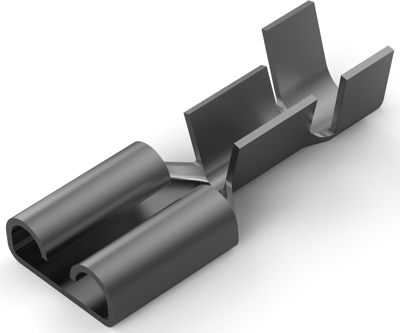

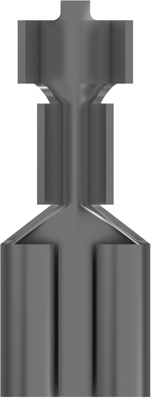

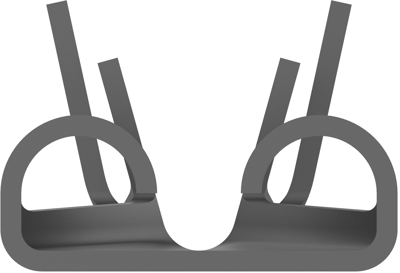

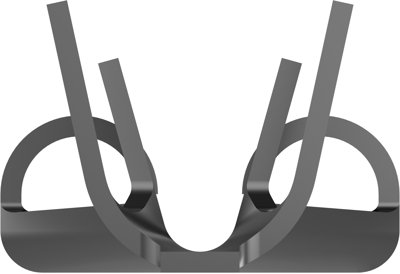

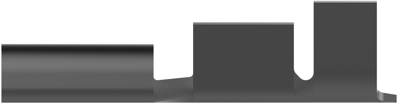

Receptacle without insulation, type TE Connectivity/AMP - 0160../ - 0041.
Made of brass.
Mating width 6.3 mm, type - 0160../ - 0041.
Mating thickness: 0.8 mm. Dimensions: E 7.7, L 19.1 mm.
Technical attributes (type, for conductor cross-section, contact finish): 1-0160304-2, 1.0 to 2.5 mm², tinned
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 17 to 14 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 20.2 mm | |
| Cable cross-section | 1.0 to 2.5 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
