1-968875-1 | AMP

Uninsulated flat plug sleeve, 2.8 x 0.8 mm, 1.5 to 2.5 mm², AWG 20 to 18, 1-968875-1

Order No.: 35P9042
EAN: 4099889628395
MPN:
1-968875-1
Series: AMP MCP
AMP

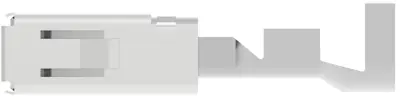

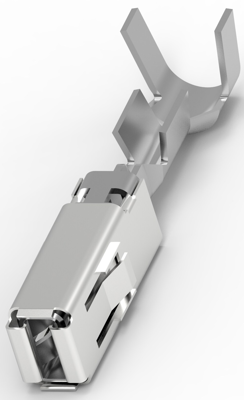

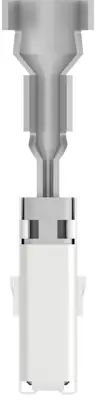

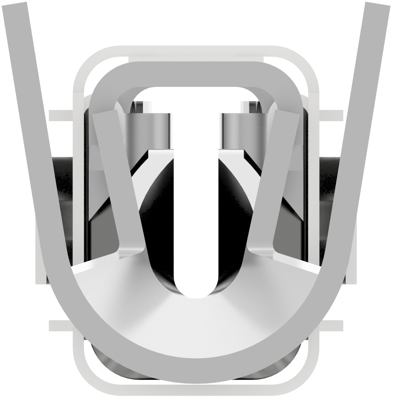

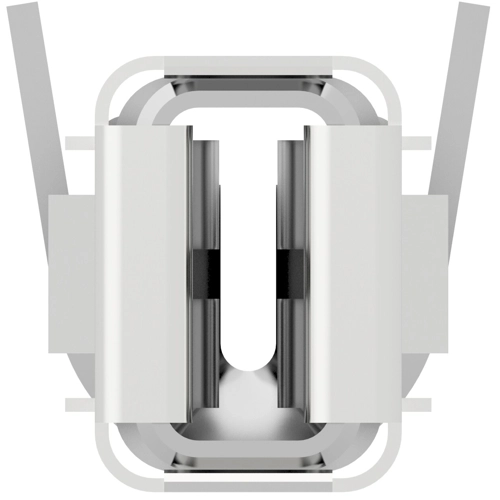

1-968875-1 AMP Receptacles Image 1
1-968875-1 AMP Receptacles Image 2
1-968875-1 AMP Receptacles Image 3
1-968875-1 AMP Receptacles Image 4
1-968875-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.3685 € *
Available: 334 pcs.
Leadtime: On Request **
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3685 €
10 pcs.
1.2971 €
50 pcs.
1.2019 €
100 pcs.
1.1186 €
500 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale

Rectangular connector, 1-968875-1, AMP

Rectangular connector, Receptacle, Wire size: 0.5-1.0 mm², Mating tab width 0.055-0.083 in [1.4-2.1] FLR ins, CuNiSi, Pre-tin, Loose piece

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 20 to 18
Suitable for 2.8 x 0.8 mm
Isolated No
Length 21 mm
Cable cross-section 1.5 to 2.5 mm²
Logistics
Country of origin US
Customs tariff number 85369040
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
