140805-2 | AMP

Insulated flat plug sleeve, 5 x 0.79 mm, 0.3 to 1.0 mm², AWG 22 to 17, brass, silver-plated, red, 140805-2

Order No.: 38P7572
EAN: 4099889628869
MPN:
140805-2
Series: FASTON
AMP

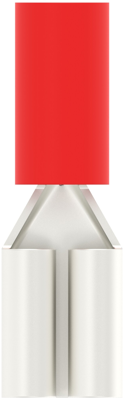

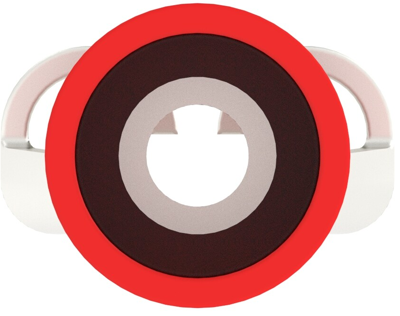

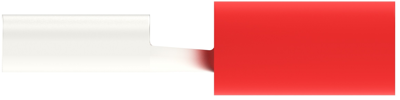

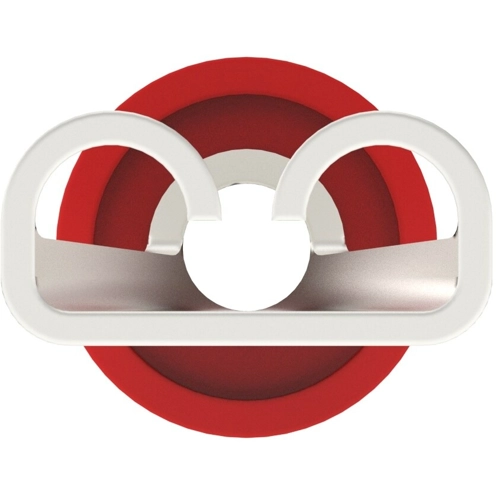

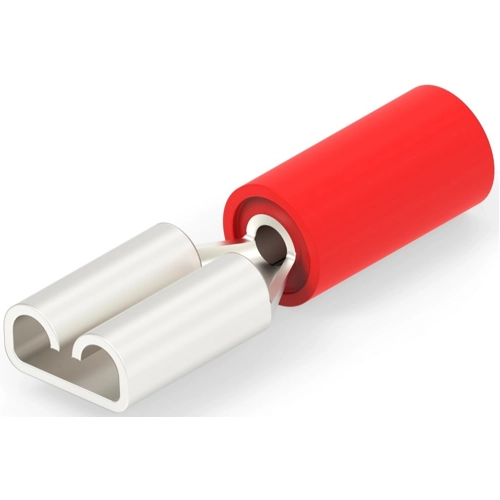

140805-2 AMP Receptacles Image 1
140805-2 AMP Receptacles Image 2
140805-2 AMP Receptacles Image 3

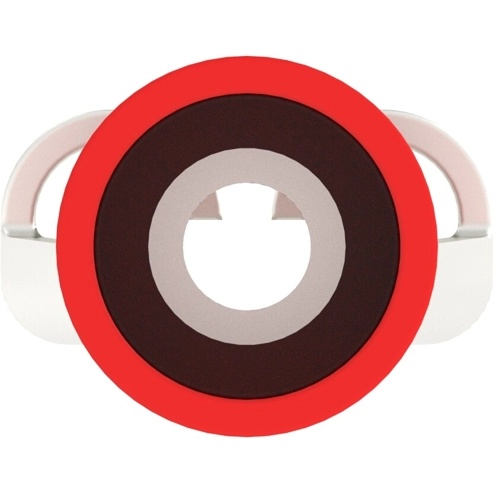

140805-2 AMP Receptacles Image 4
140805-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Available in 5 Days: 625 pcs.
Leadtime: 7 Weeks **
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
75 pcs.
1.2257 €
450 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale

Quick disconnect, 140805-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 21.6 mm, Wire Size: 22 – 17 AWG, Wire Size: 0.3 – 1 mm², Wire Size: 634 – 1980 CMA, Quick Disconnect Mating Tab Width: 5 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Quick Disconnect Packaging Method: Box, Barrel Color: Red

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 22 to 17
Insulation colour red
Suitable for 5 x 0.79 mm
Isolated Yes
Length 21.6 mm
Cable cross-section 0.3 to 1.0 mm²
Material brass, silver-plated
Logistics
Country of origin CN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
