151614-1 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, brass, tin-plated, 151614-1
Unit Price (€ / pc.)
0.0702 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
2,808.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40000 pcs.
0.0702 €

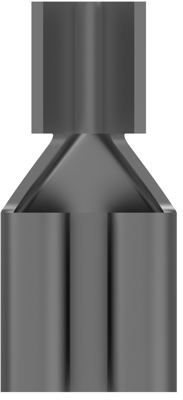

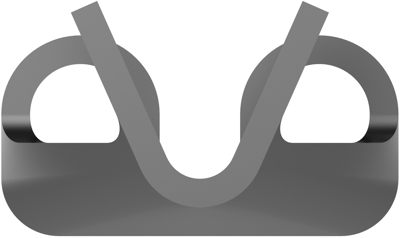

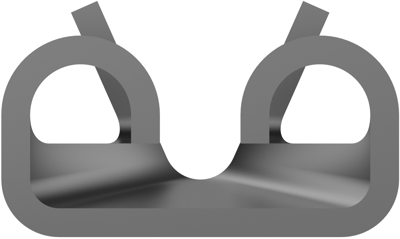

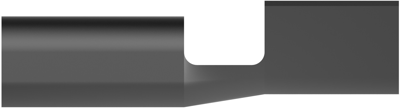

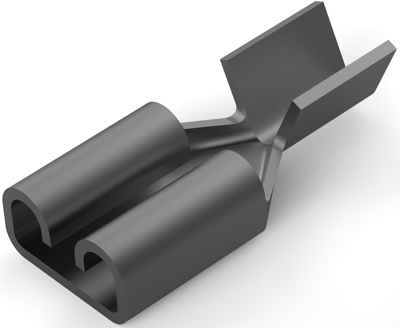

Quick disconnect, 151614-1, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 24 – 20 AWG, Wire Size: 0.2 – .51 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 20000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 24 bis 20 | |
| Geeignet für | 2,8 x 0,51 mm | |
| Isoliert | No | |
| Länge | 7.75 mm | |
| Leiterquerschnitt | 0,2 bis 0,51 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
