154717-3 | AMP

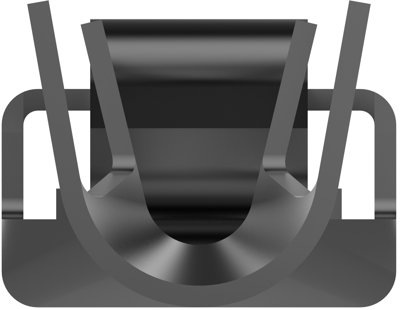

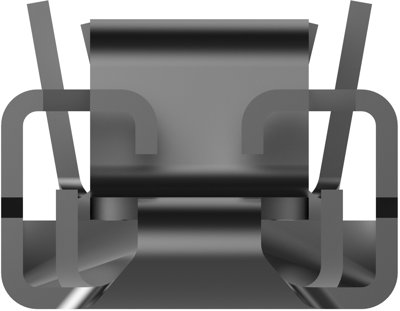

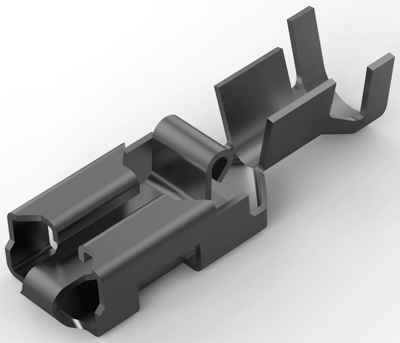

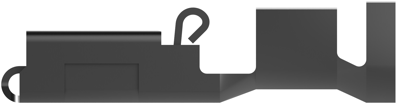

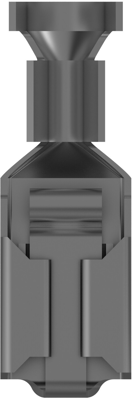

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.1 to 4.17 mm², AWG 14 to 11, brass, tin-plated, 154717-3
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 5 Days: 12,000 pcs.
Leadtime: 26 Weeks **
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3332 €
50 pcs.
0.2975 €
100 pcs.
0.2594 €
500 pcs.
0.2202 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 154717-3, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 14 – 11 AWG, Wire Size: 2.1 – 4.17 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 1500, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 14 bis 11 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 22.5 mm | |
| Cable cross-section | 2,1 bis 4,17 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
