160457-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, phosphor bronze, 160457-1

Order No.: 71P2547
EAN: 4099891712570
MPN:
160457-1

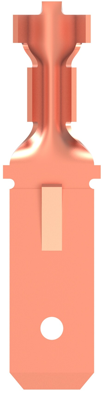

160457-1 AMP Receptacles Image 1

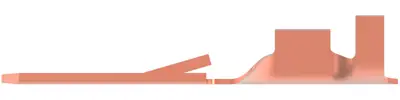

160457-1 AMP Receptacles Image 2

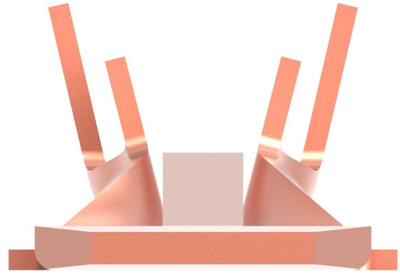

160457-1 AMP Receptacles Image 3

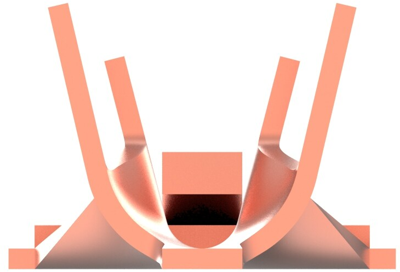

160457-1 AMP Receptacles Image 4

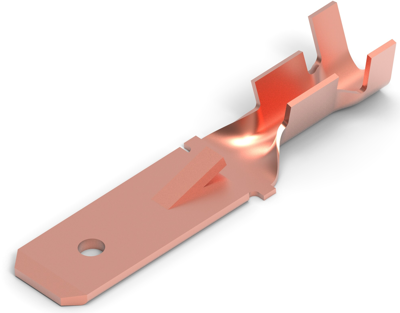

160457-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2499 € *
Available: 0 pcs.
Available in 5 Days: 147,000 pcs.
Leadtime: 30 Weeks **
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2499 €
100 pcs.
0.2202 €
250 pcs.
0.1940 €
500 pcs.
0.1583 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug sleeve, 160457-1, AMP

Quick disconnect, Tab, 18-14 AWG Wire size, 0.82-2.08 mm² Wire size, Mating tab width 6.35 mm, Straight.

Technical specifications
Anschluss Crimpanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 18 bis 14
Geeignet für 6,35 x 0,81 mm
Isoliert No
Länge 28 mm
Leiterquerschnitt 0,82 bis 2,08 mm²
Material Phosphorbronze
Logistics
Ursprungsland NL
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
