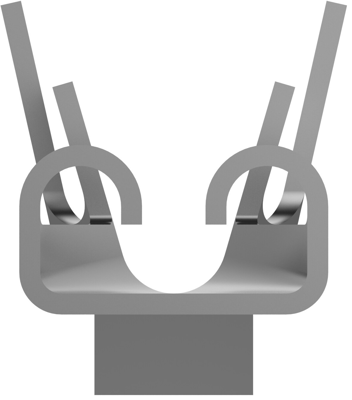

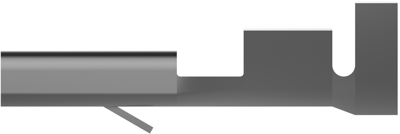

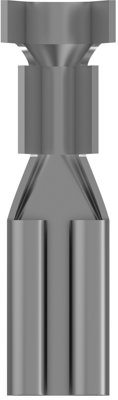

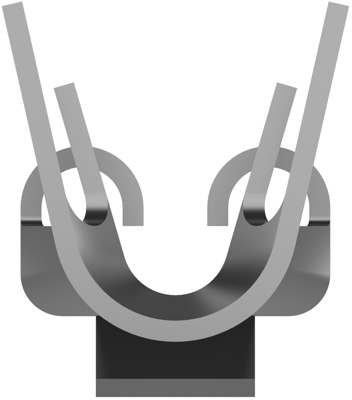

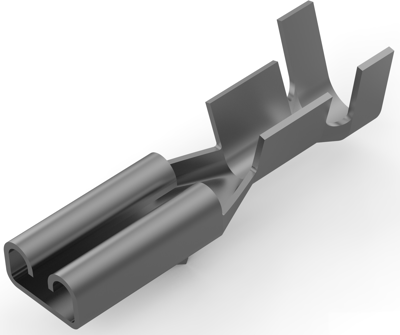

160668-6 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.79 mm, 0.5 to 1.5 mm², AWG 20 to 15, brass, tin-plated, 160668-6
Order No.: 35P2516
EAN: 4099889625554
MPN:
160668-6
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: On Request **
Quick disconnect, 160668-6, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Overall Length: 15 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.5 – 1.5 mm², Wire Size: 1021 – 3256 CMA, Quick Disconnect Mating Tab Width: 2.8 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30 – 105 °C, Packaging Quantity: 500, Quick Disconnect Packaging Method: Box
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 15 | |
| Suitable for | 2.8 x 0.79 mm | |
| Isolated | No | |
| Length | 15 mm | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
