160759-2 | AMP

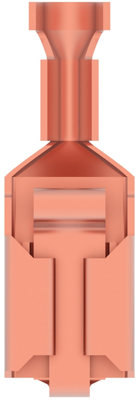

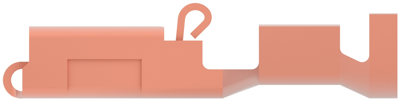

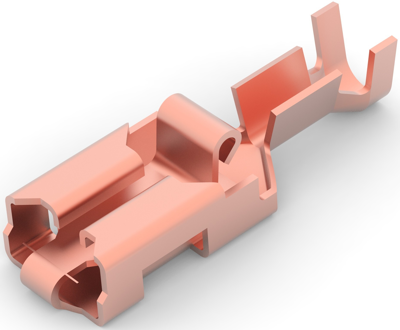

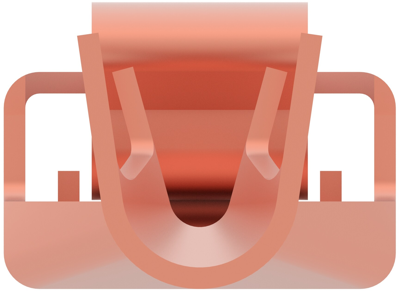

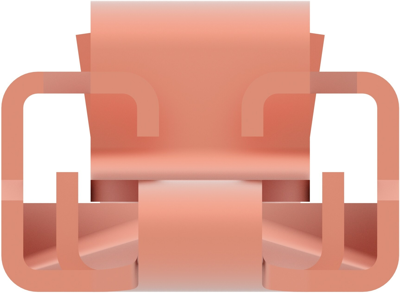

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, phosphor bronze, 160759-2
Order No.: 35P3618
EAN: 4099889626285
MPN:
160759-2
Unit Price (€ / pc.)
0.1547 € *
Available: 0 pcs.
Available in 5 Days: 35,990 pcs.
Leadtime: 29 Weeks **
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
1500 pcs.
0.1547 €
3000 pcs.
0.1452 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 160759-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 5100, Packaging Method: Strip/Reel, Comment: FLK-Wire: Normal Wire
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 15 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 22.3 mm | |
| Cable cross-section | 0.51 to 1.65 mm² | |
| Material | phosphor bronze |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
