160834-2 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.3 to 1.5 mm², AWG 22 to 16, brass, tin-plated, red, 160834-2

Order No.: 38P7545
EAN: 4099889628746
MPN:
160834-2
Series: FASTON
AMP

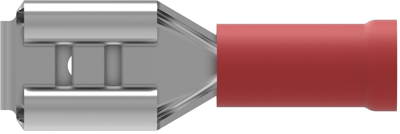

160834-2 AMP Receptacles Image 1

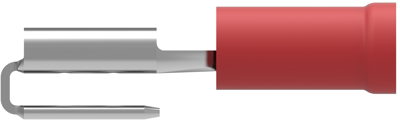

160834-2 AMP Receptacles Image 2

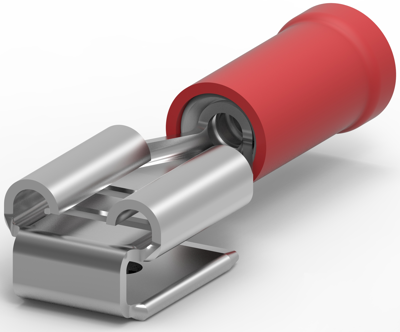

160834-2 AMP Receptacles Image 3

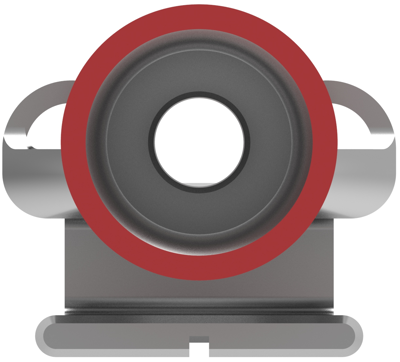

160834-2 AMP Receptacles Image 4

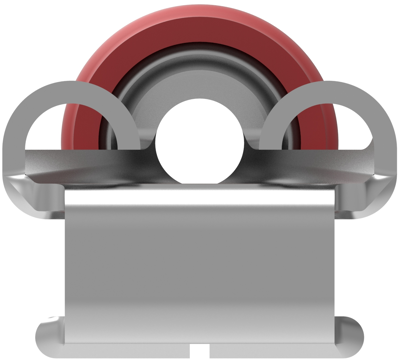

160834-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Available: 1,506 pcs.
Leadtime: 114 Weeks **
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8925 €
10 pcs.
0.8211 €
50 pcs.
0.7497 €
100 pcs.
0.6783 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle, 160834-2, AMP

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Tab & Receptacle, Terminal & Splice Type: Tab & Receptacle, Terminal Orientation: Piggyback, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 23.54 mm, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.5 mm², Wire Size: 592 – 3260 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Packaging Method: Loose Piece, Barrel Color: Red

Technical Data

  • AWG conductor cross-section: AWG 22 to 16
  • Material: Brass, tin-plated
  • Length: 23,55 mm
  • Isolated: Yes
Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 22 to 16
Insulation colour red
Suitable for 6.35 x 0.81 mm
Isolated Yes
Length 23.54 mm
Cable cross-section 0.3 to 1.5 mm²
Material brass, tin-plated
Nominal size according to DIN DIN 1787
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
