160860-3 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.03 mm², AWG 20 to 17, brass, 160860-3
Unit Price (€ / pc.)
0.1357 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.14 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.1357 €
10000 pcs.
0.1333 €
*incl. VAT plus shipping costs
**Subject to prior sale

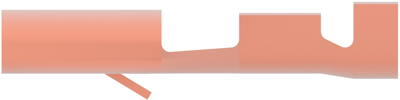

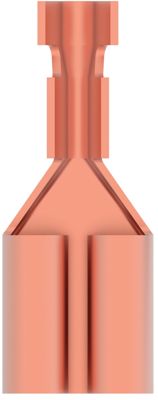

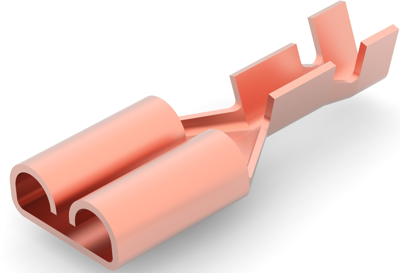

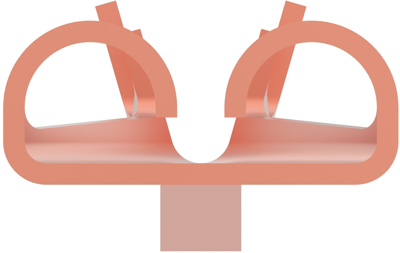

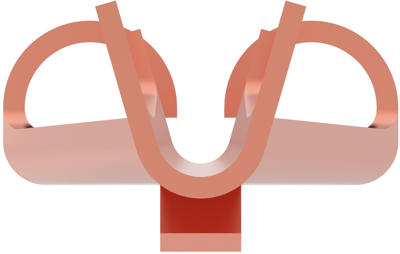

Flat receptacle, 160860-3, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 20 – 17 AWG, Wire Size: 0.51 – 1.03 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 5000, Packaging Method: Strip/Reel, Comment: Chamfered,With dimple
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 17 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 19.2 mm | |
| Cable cross-section | 0.51 to 1.03 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
