165565-2 | AMP

Insulated flat plug sleeve, 2.79 x 0.51 mm, 0.3 to 1.5 mm², AWG 22 to 16, phosphor bronze, tin-plated, red, 165565-2

Order No.: 05F5251
EAN: 4099889618464
MPN:
165565-2
0-0165565-2
Series: FASTON
AMP

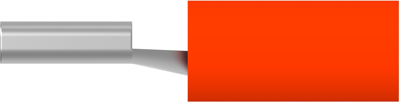

165565-2 AMP Receptacles Image 1

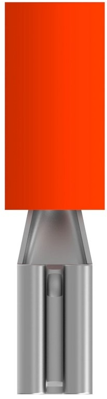

165565-2 AMP Receptacles Image 2

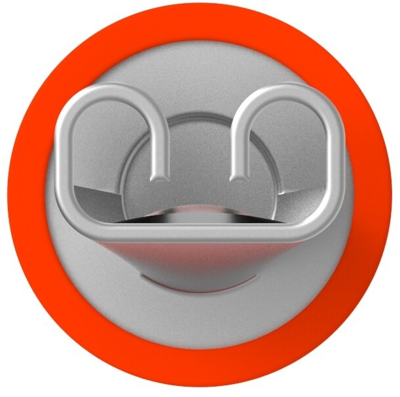

165565-2 AMP Receptacles Image 3

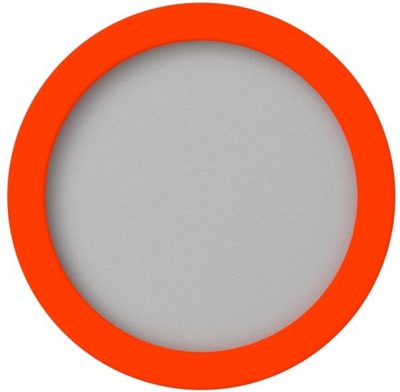

165565-2 AMP Receptacles Image 4

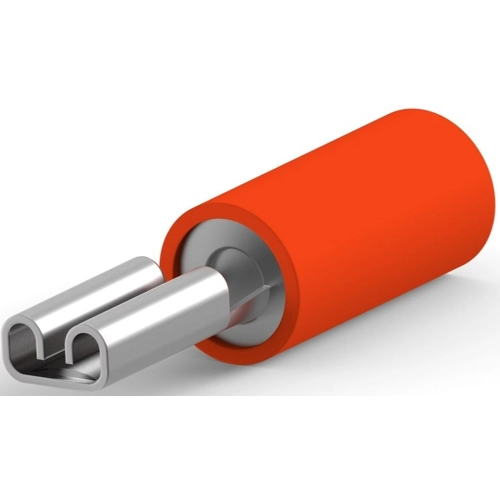

165565-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available: 0 pcs.
Available in 5 Days: 1,348 pcs.
Leadtime: 33 Weeks **
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
150 pcs.
0.7854 €
650 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacles, insulated, type TE Connectivity/AMP 0-0165.

For conductor cross-section 0.3 to 1.5 mm², made of bronze or brass; Insulation: PVC or nylon, red.

Technical attributes (type, mating width x mating thickness, insulation type, contact material): 565-2, 2.8 x 0.5 mm, nylon, tinned bronze

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 22 to 16
Insulation colour red
Suitable for 2.79 x 0.51 mm
Isolated Yes
Length 19.8 mm
Cable cross-section 0.3 to 1.5 mm²
Material phosphor bronze, tin-plated
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
