170014-5 | AMP

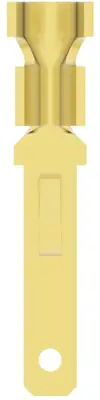

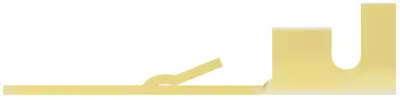

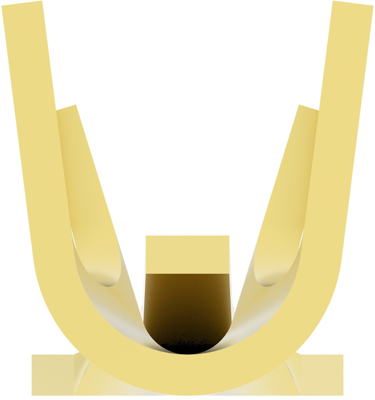

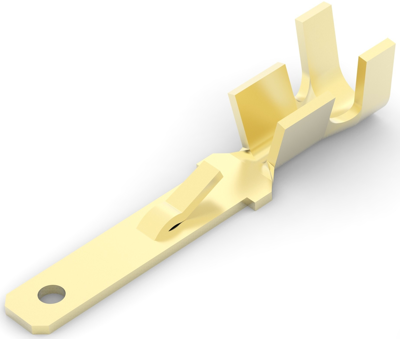

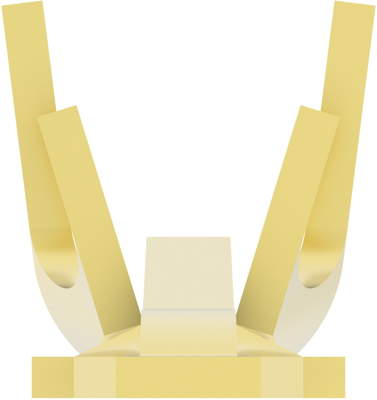

Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, 170014-5
Unit Price (€ / pc.)
0.0797 € *
Available: 0 pcs.
Available in 5 Days: 7,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.0797 €
21000 pcs.
0.0750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 170014-5, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.51 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 9000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Suitable for | 2.8 x 0.51 mm | |
| Isolated | No | |
| Length | 20.5 mm | |
| Cable cross-section | 0.51 to 1.31 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
