170048-2 | AMP

Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, brass, tin-plated, 170048-2

Order No.: 71P3145
EAN: 4099891712617
MPN:
170048-2
Series: FASTON 110

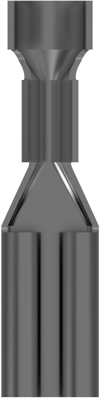

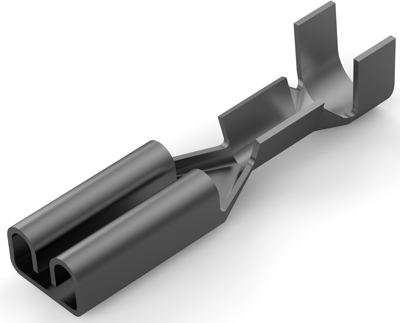

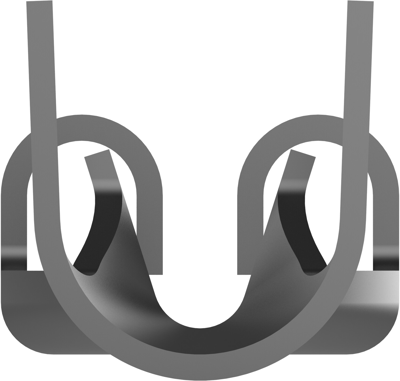

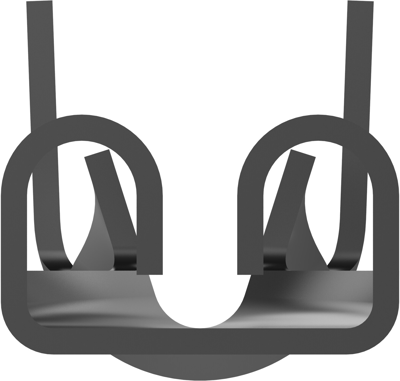

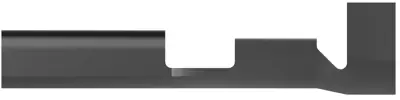

170048-2 AMP Receptacles Image 1
170048-2 AMP Receptacles Image 2
170048-2 AMP Receptacles Image 3
170048-2 AMP Receptacles Image 4
170048-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1690 € *
Available: 0 pcs.
Available in 5 Days: 61,783 pcs.
Leadtime: 11 Weeks **
Total Price:
202.78 € *
Price list
Quantity
Price per unit*
1200 pcs.
0.1690 €
2700 pcs.
0.1642 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug sleeve, 170048-2, AMP

Quick disconnect, Receptacle, 24-20 AWG Wire size, 0.2-0.51 mm² Wire size, Mating tab width 2.8 mm, Straight, Brass.

Technical specifications
Anschluss Crimpanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 24 bis 20
Geeignet für 2,8 x 0,51 mm
Isoliert No
Länge 17.3 mm
Leiterquerschnitt 0,2 bis 0,51 mm²
Material Messing, verzinnt
Logistics
Ursprungsland US
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
