170140-2 | AMP

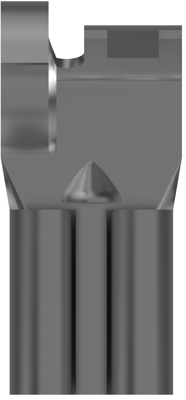

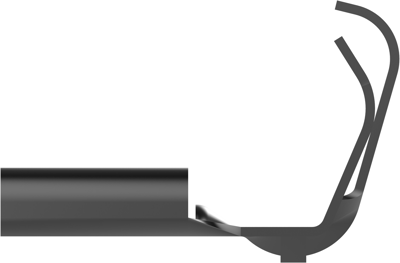

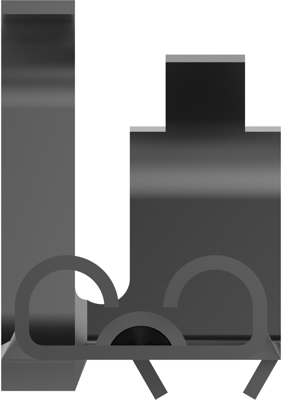

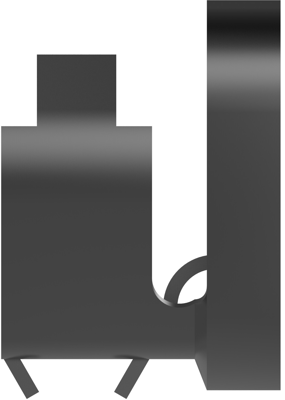

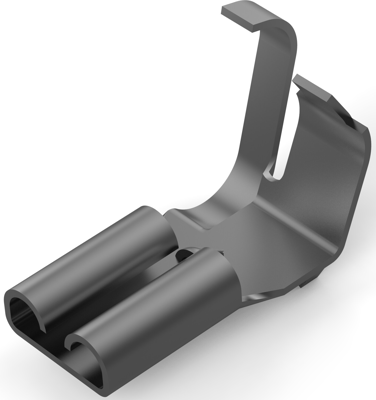

Uninsulated flat plug sleeve, 4.75 x 0.5 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, tin-plated, 170140-2
Unit Price (€ / pc.)
0.0428 € *
Available: 0 pcs.
Available in 5 Days: 2,205,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.0428 €
14000 pcs.
0.0393 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 170140-2, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.5 – 1.5 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.33 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 7000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Suitable for | 4.75 x 0.5 mm | |
| Isolated | No | |
| Length | 13.5 mm | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
