170342-1 | AMP

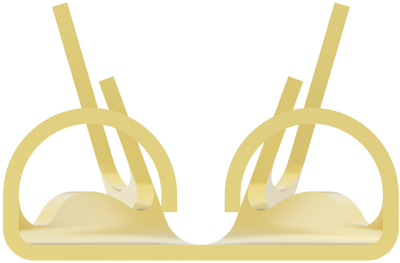

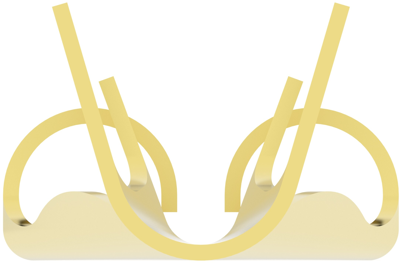

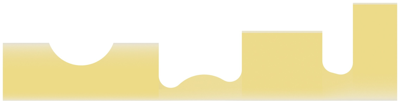

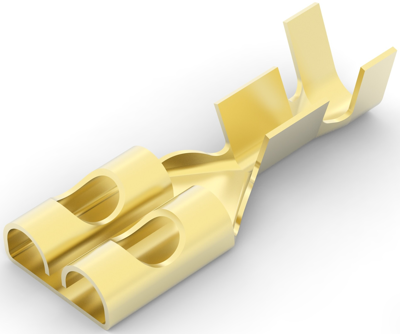

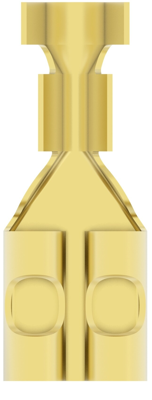

Uninsulated flat plug sleeve, 6.35 x 0.41 mm, 0.51 to 2.08 mm², AWG 20 to 14, brass, 170342-1
Unit Price (€ / pc.)
0.1035 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Quick disconnect, 170342-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 14 AWG, Wire Size: 0.51 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.61 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 6000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 20 bis 14 | |
| Geeignet für | 6,35 x 0,41 mm | |
| Isoliert | No | |
| Länge | 19.6 mm | |
| Leiterquerschnitt | 0,51 bis 2,08 mm² | |
| Material | Messing |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
