170349-1 | AMP

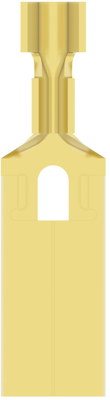

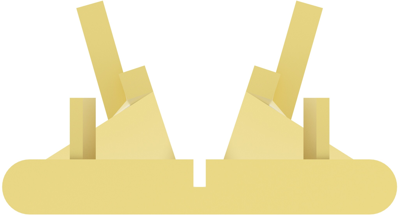

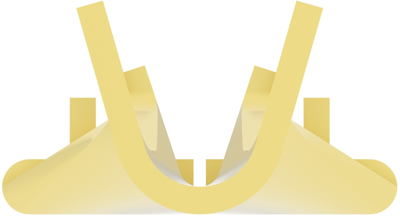

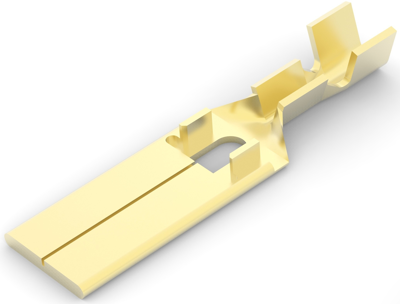

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.51 mm², AWG 22 to 20, brass, 170349-1
Unit Price (€ / pc.)
0.1107 € *
Available: 0 pcs.
Available in 5 Days: 18,000 pcs.
Leadtime: 15 Weeks **
Total Price:
664.02 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1107 €
12000 pcs.
0.1047 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 170349-1, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Tab, Terminal & Splice Type: Tab, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 22 – 20 AWG, Wire Size: 0.32 -0.51 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 6000, Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 22 bis 20 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 26.4 mm | |
| Cable cross-section | 0,32 bis 0,51 mm² | |
| Material | Messing |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
