1742669-1 | AMP

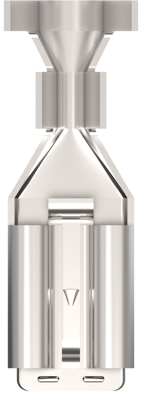

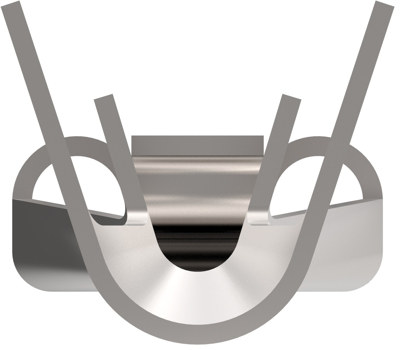

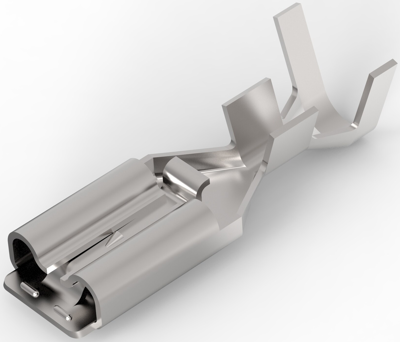

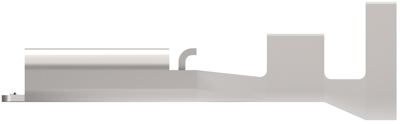

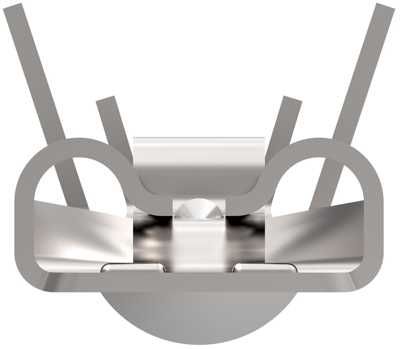

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, steel, 1742669-1
Order No.: 35P3459
EAN: 4099889625622
MPN:
1742669-1
Unit Price (€ / pc.)
0.1059 € *
Available: 0 pcs.
Available in 5 Days: 108,000 pcs.
Leadtime: 32 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1059 €
12000 pcs.
0.1023 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 1742669-1, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Steel, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 250 °C, Packaging Quantity: 6000, Quick Disconnect Packaging Method: Strip/Reel, Line: AMP POSITIVE LOCK
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Suitable for | 4.75 x 0.51 mm | |
| Isolated | No | |
| Length | 17.2 mm | |
| Cable cross-section | 0.51 to 1.31 mm² | |
| Material | steel |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
