174777-1 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, tin-plated, 174777-1
Unit Price (€ / pc.)
0.0809 € *
Available: 0 pcs.
Available in 5 Days: 26,000 pcs.
Leadtime: 13 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
8000 pcs.
0.0809 €
24000 pcs.
0.0774 €
*incl. VAT plus shipping costs
**Subject to prior sale

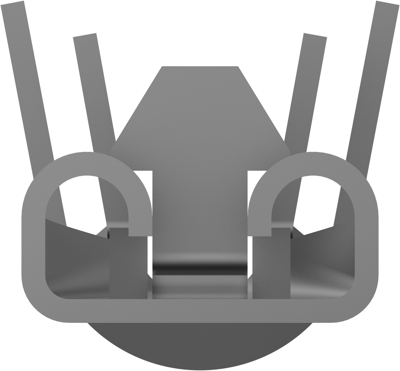

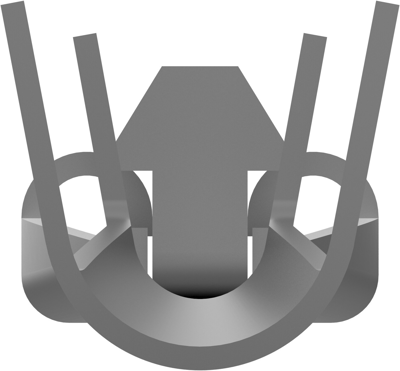

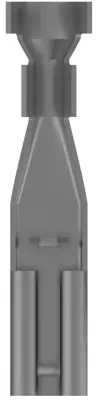

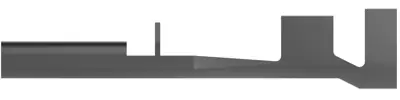

Quick disconnect, 174777-1, AMP
Quick disconnect, Receptacle, Wire size: 20- 16 AWG, Wire size: 0.51- 1.31 mm², Mating tab width 0.11 in [2.8 mm], Straight, Brass, Positive lock 110
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Suitable for | 2.8 x 0.51 mm | |
| Isolated | No | |
| Length | 17.2 mm | |
| Cable cross-section | 0.51 to 1.31 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
