175019-1 | AMP

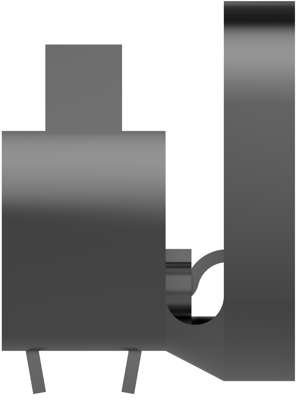

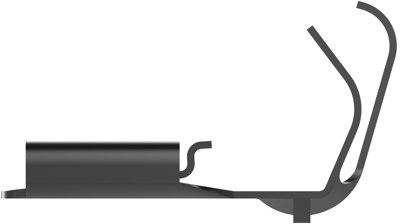

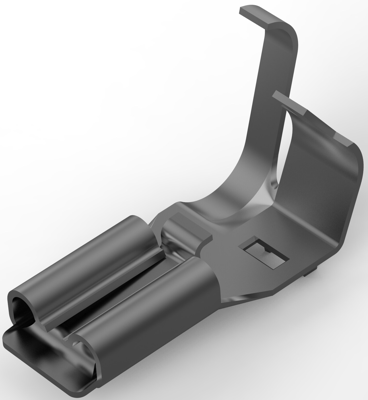

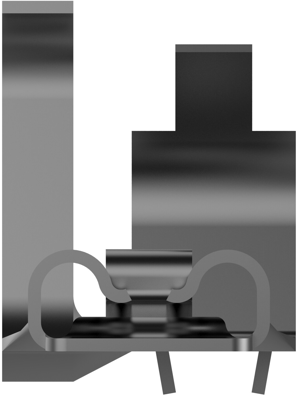

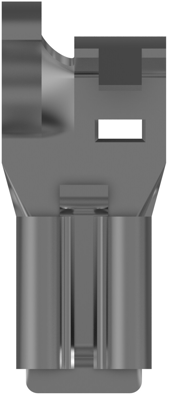

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.32 to 1.31 mm², AWG 22 to 16, brass, tin-plated, 175019-1
Unit Price (€ / pc.)
0.1440 € *
Available: 0 pcs.
Available in 5 Days: 2,682,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.72 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1440 €
100 pcs.
0.1273 €
500 pcs.
0.1119 €
1000 pcs.
0.0916 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 175019-1, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: Yes, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 22 – 16 AWG, Wire Size: 0.32 – 1.31 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 4000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 22 bis 16 | |
| Suitable for | 4,75 x 0,51 mm | |
| Isolated | No | |
| Length | 15.9 mm | |
| Cable cross-section | 0,32 bis 1,31 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
