175135-1 | AMP

Uninsulated flat plug sleeve, 0.32 to 0.82 mm², AWG 22 to 18, phosphor bronze, tin-plated, 175135-1

Order No.: 34P6457
EAN: 4099889619225
MPN:
175135-1

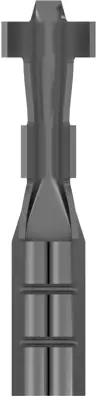

175135-1 AMP Receptacles Image 1

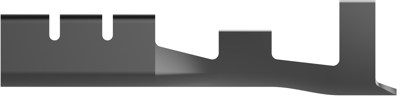

175135-1 AMP Receptacles Image 2

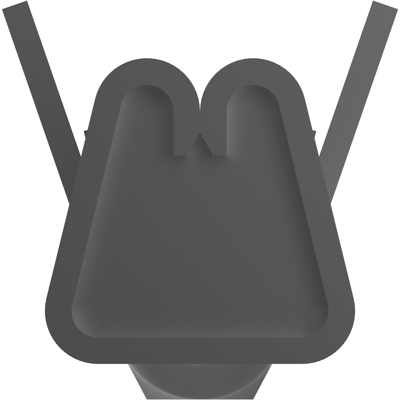

175135-1 AMP Receptacles Image 3

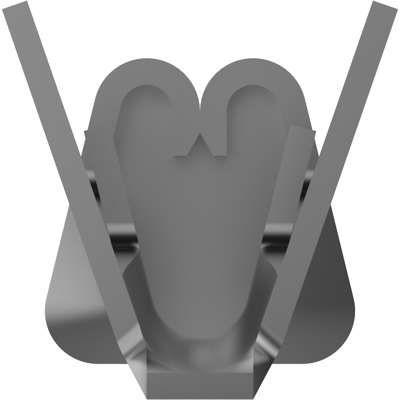

175135-1 AMP Receptacles Image 4

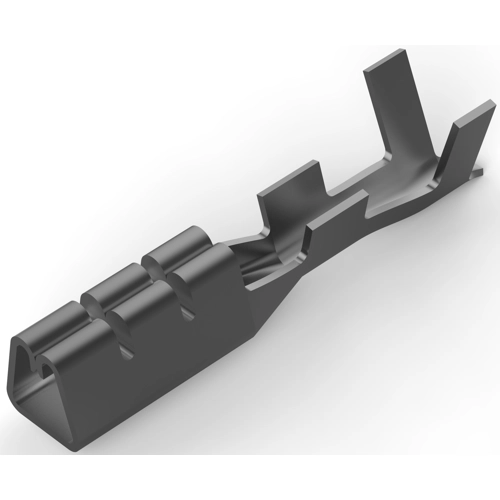

175135-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1297 € *
Available: 0 pcs.
Leadtime: 36 Weeks **
Total Price:
2,723.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
21000 pcs.
0.1297 €

Quick disconnect, 175135-1, AMP

Insulated: No, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Insulation Requirement: Uninsulated, Operating Temperature Range: -20 – 150 °C, Packaging Quantity: 7000, Quick Disconnect Packaging Method: Reel

Technical specifications
Anschluss Crimpanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 22 bis 18
Isoliert No
Länge 18 mm
Leiterquerschnitt 0,32 bis 0,82 mm²
Material Phosphorbronze, verzinnt
Logistics
Ursprungsland TH
Zolltarifnummer 85369040
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
