180441-2 | AMP

Name: Uninsulated flat plug sleeve, 2.8 x 0.3 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, tin-plated, 180441-2
Brand: AMP
SKU: 34P8190
Availability: OutOfStock

Uninsulated flat plug sleeve, 2.8 x 0.3 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, tin-plated, 180441-2

Order No.: 34P8190

EAN: 4099889622188

MPN:

180441-2

Series: FASTON

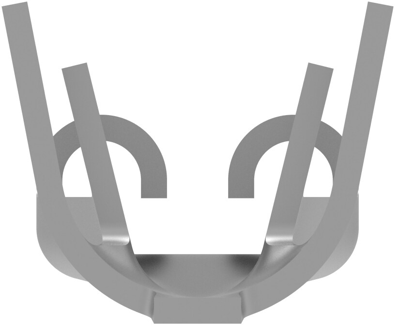

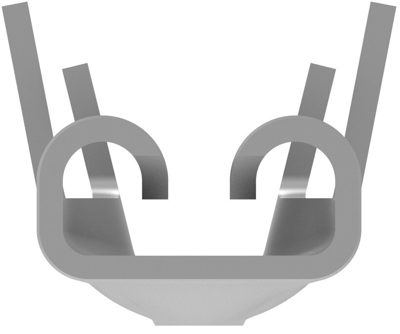

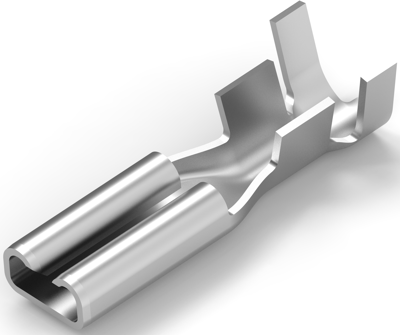

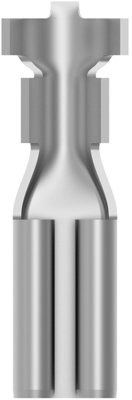

Image may differ

Key Specification:

Version flat plug sleeve

Suitable for 2.8 x 0.3 mm

Material brass, tin-plated

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Quick disconnect, 180441-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.48 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 250, Quick Disconnect Packaging Method: Loose Piece/Carton

Technical specifications

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 20 to 15
	Suitable for	2.8 x 0.3 mm
	Isolated	No
	Length	14.5 mm
	Cable cross-section	0.51 to 1.65 mm²
	Material	brass, tin-plated
