182485-4 | AMP

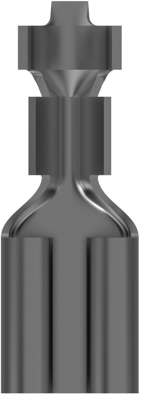

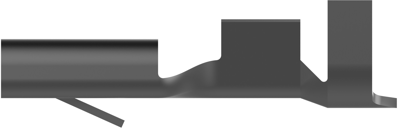

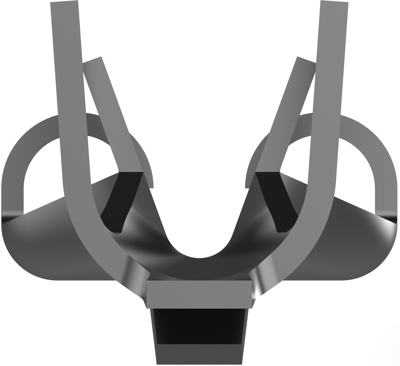

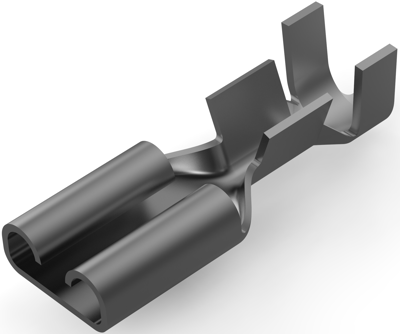

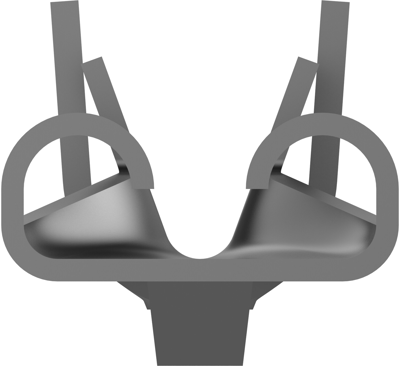

Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, phosphor bronze, tin-plated, 182485-4
Unit Price (€ / pc.)
0.2261 € *
Available: 0 pcs.
Available in 5 Days: 1,981 pcs.
Leadtime: 42 Weeks **
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2261 €
100 pcs.
0.1987 €
250 pcs.
0.1749 €
500 pcs.
0.1440 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 182485-4, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 250, Quick Disconnect Packaging Method: Loose Piece/Carton, Line: FASTON .187
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 20 bis 15 | |
| Geeignet für | 4,75 x 0,81 mm | |
| Isoliert | No | |
| Länge | 15 mm | |
| Leiterquerschnitt | 0,51 bis 1,65 mm² | |
| Material | Phosphorbronze, verzinnt |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
