2-160304-4 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 2.5 mm², AWG 17 to 14, steel, nickel-plated, 2-160304-4

Order No.: 05F4922
EAN: 4099889618327
MPN:
2-160304-4
2-0160304-4
Series: FASTON

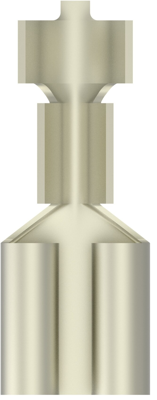

2-160304-4 AMP Receptacles Image 1

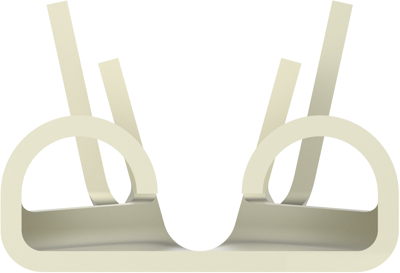

2-160304-4 AMP Receptacles Image 2

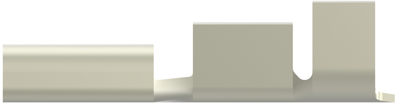

2-160304-4 AMP Receptacles Image 3

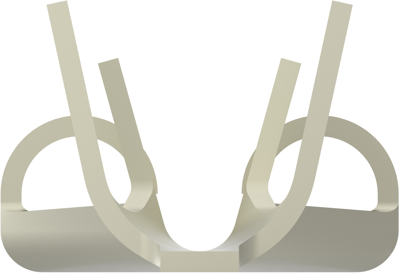

2-160304-4 AMP Receptacles Image 4
2-160304-4 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 930 pcs.
Next delivery: 1,000 pcs. on 2025-08-27
Available in 5 Days: 3,614 pcs.
Leadtime: 29 Weeks **
Total Price:
9.04 € *
Price list
Quantity
Price per unit*
20 pcs.
0.4522 €
50 pcs.
0.3808 €
200 pcs.
0.3451 €
500 pcs.
0.3058 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle, 2-160304-4, AMP

Receptacle without insulation, made of brass.

Mating width 6.3 mm, type - 0160.

Mating thickness: 0.8 mm. Dimensions: E 7.7, L 19.1 mm.

Technical attributes (type, for conductor cross-section, contact finish): 2-0160304-4, 1.0 to 2.5 mm², nickel-plated.

Technical specifications
Connection Crimpanschluss
Version Flachsteckhülse
AWG cross-section AWG 17 bis 14
Suitable for 6,35 x 0,81 mm
Isolated No
Length 20.2 mm
Cable cross-section 1,0 bis 2,5 mm²
Material Stahl, vernickelt
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
