2-520102-2 | AMP

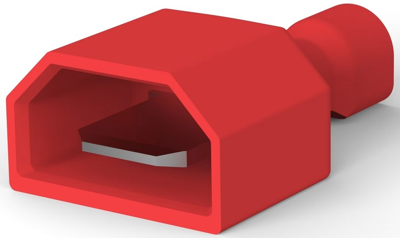

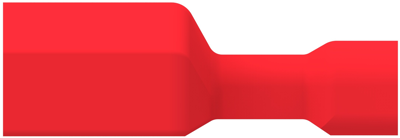

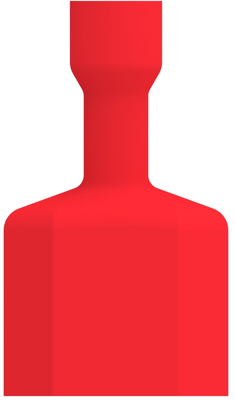

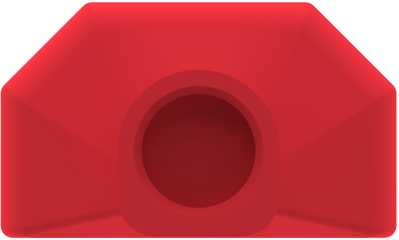

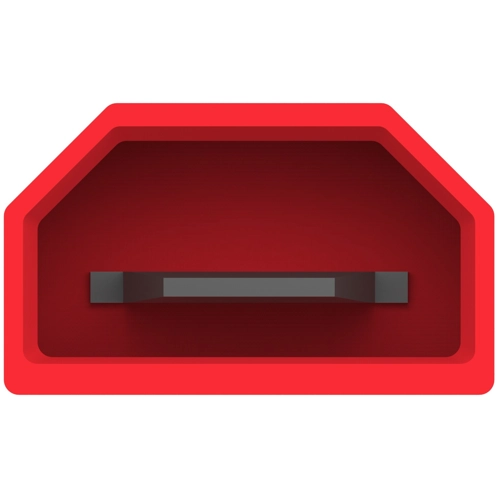

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, red, 2-520102-2
Unit Price (€ / pc.)
0.2832 € *
Available: 0 pcs.
Available in 5 Days: 975,800 pcs.
Leadtime: 16 Weeks **
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
1400 pcs.
0.2832 €
2800 pcs.
0.2785 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 2-520102-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 -0.82 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 1400, Packaging Method: Strip/Reel, Barrel Color: Red
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Insulation colour | red | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | Yes | |
| Length | 21.75 mm | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
