281828-2 | AMP

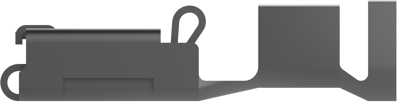

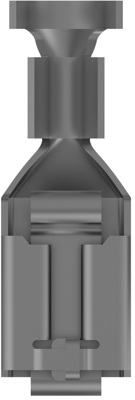

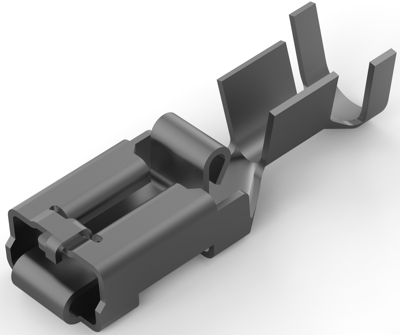

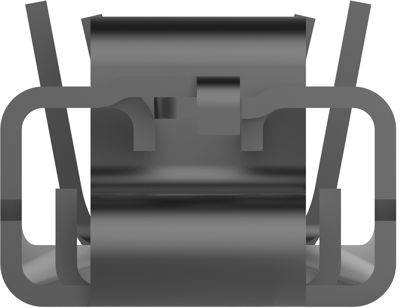

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.5 to 4.0 mm², AWG 13.5 to 11, brass, tin-plated, 281828-2
Order No.: 35P3574
EAN: 4099889625905
MPN:
281828-2
Unit Price (€ / pc.)
0.1618 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Flat receptacle, 281828-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 14 – 11 AWG, Wire Size: 2.5 – 4 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 1500, Packaging Method: Strip/Reel, Comment: FLK-Wire: Normal Wire
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 13,5 bis 11 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 22.2 mm | |
| Cable cross-section | 2,5 bis 4,0 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
