3-350816-2 | AMP

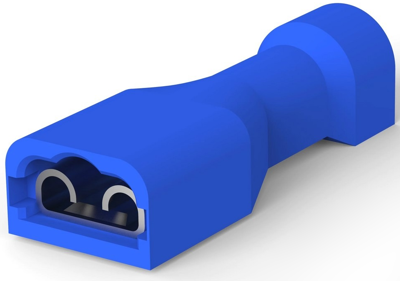

Insulated flat plug sleeve, 4.75 x 0.51 mm, 1.31 to 2.08 mm², AWG 16 to 14, brass, tin-plated, blue, 3-350816-2
Unit Price (€ / pc.)
0.2475 € *
Available: 0 pcs.
Available in 5 Days: 783 pcs.
Leadtime: 16 Weeks **
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
400 pcs.
0.2475 €
2100 pcs.
0.2047 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 3-350816-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 1000, Packaging Method: Loose Piece/Carton, Barrel Color: Blue
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 16 to 14 | |
| Insulation colour | blue | |
| Suitable for | 4.75 x 0.51 mm | |
| Isolated | Yes | |
| Length | 21.75 mm | |
| Cable cross-section | 1.31 to 2.08 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
