3-520133-2 | AMP

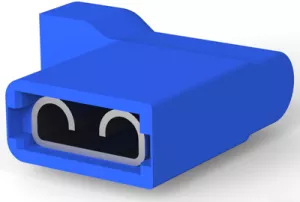

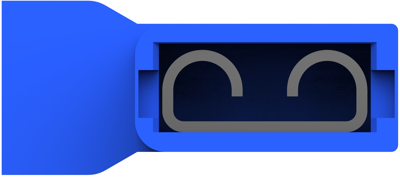

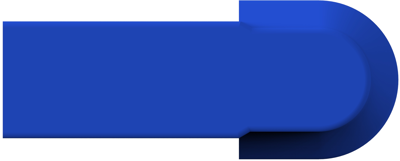

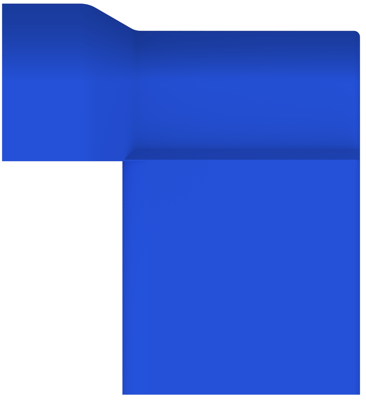

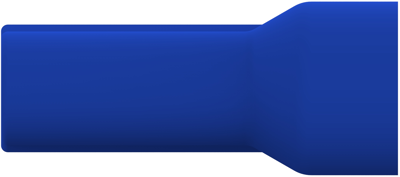

Insulated flat plug sleeve, 6.35 x 0.81 mm, 1.31 to 2.08 mm², AWG 16 to 14, brass, tin-plated, blue, 3-520133-2
Unit Price (€ / pc.)
0.6426 € *
Available: 136 pcs.
Leadtime: On Request **
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6426 €
50 pcs.
0.5831 €
200 pcs.
0.5117 €
500 pcs.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacle, 3-520133-2, AMP
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 1000, Packaging Method: Loose Piece/Carton, Barrel Color: Blue
Technical Data
- AWG conductor cross-section: AWG 16 to 14
- Material: Brass, tin-plated
- Length: 14,73 mm
- Isolated: Yes
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 16 bis 14 | |
| Farbe der Isolation | blau | |
| Geeignet für | 6,35 x 0,81 mm | |
| Isoliert | Yes | |
| Länge | 14.73 mm | |
| Leiterquerschnitt | 1,31 bis 2,08 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
