42452-5 | AMP
Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, phosphor bronze, tin-plated, 42452-5
Unit Price (€ / pc.)
0.0821 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
3,284.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40000 pcs.
0.0821 €

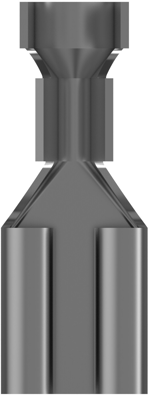

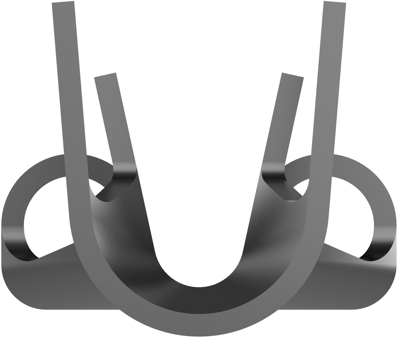

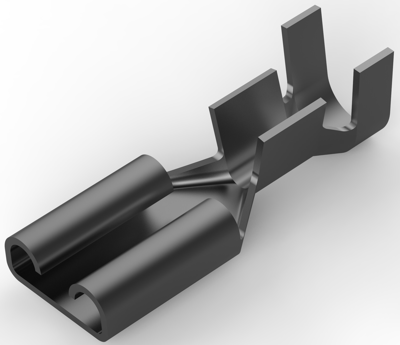

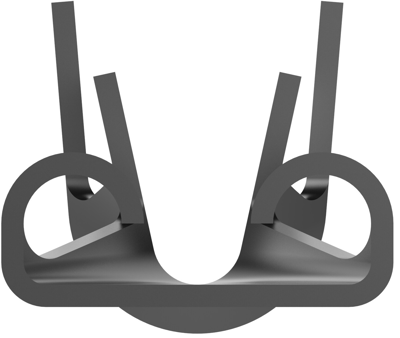

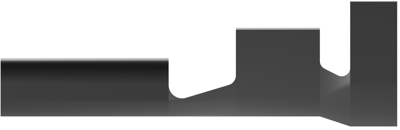

Flat receptacle, 42452-5, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 20000, Packaging Method: Strip/Reel, Comment: Swage outside/front edge of receptacle
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 20 bis 16 | |
| Geeignet für | 4,75 x 0,51 mm | |
| Isoliert | No | |
| Länge | 16.51 mm | |
| Leiterquerschnitt | 0,51 bis 1,31 mm² | |
| Material | Phosphorbronze, verzinnt |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
