42470-1 | AMP

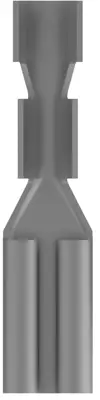

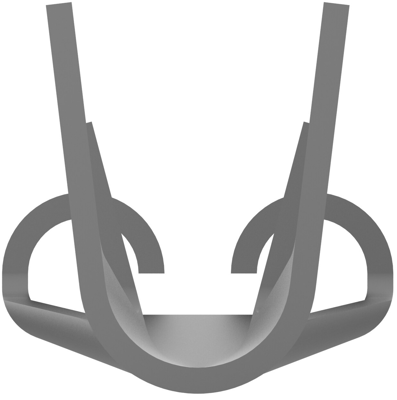

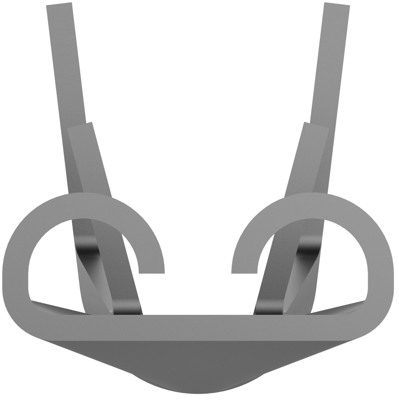

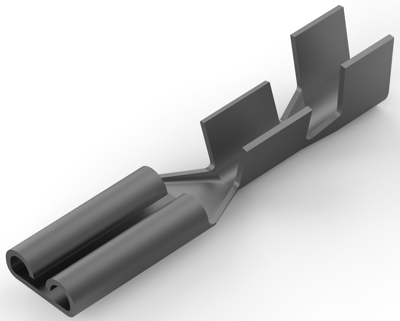

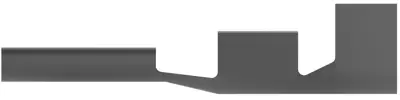

Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 42470-1
Unit Price (€ / pc.)
0.2785 € *
Available: 0 pcs.
Available in 5 Days: 64,061 pcs.
Leadtime: 14 Weeks **
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2785 €
100 pcs.
0.2451 €
250 pcs.
0.2166 €
500 pcs.
0.1833 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 42470-1, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 1000, Quick Disconnect Packaging Method: Loose Piece/Carton, Comment: No Preform.
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 22 bis 18 | |
| Geeignet für | 2,8 x 0,51 mm | |
| Isoliert | No | |
| Länge | 17.39 mm | |
| Leiterquerschnitt | 0,32 bis 0,82 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
