42474-4 | AMP

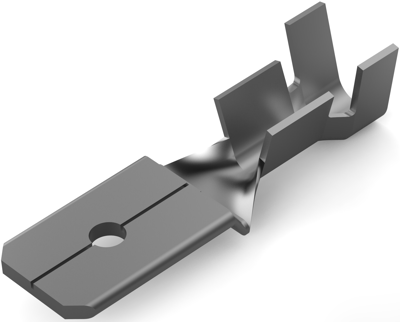

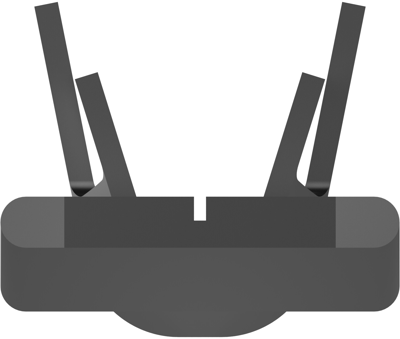

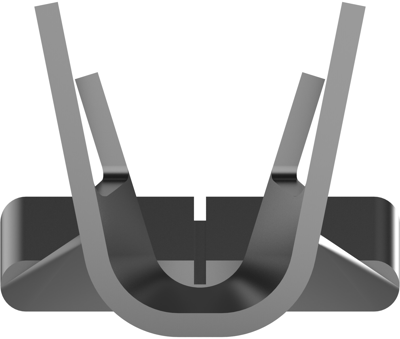

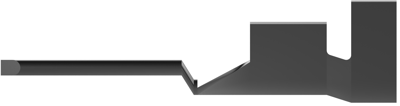

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 42474-4
Unit Price (€ / pc.)
0.2178 € *
Available: 0 pcs.
Available in 5 Days: 3,000 pcs.
Leadtime: 25 Weeks **
Total Price:
653.31 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.2178 €
6000 pcs.
0.2047 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 42474-4, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 3000, Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 18 bis 14 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 20.57 mm | |
| Cable cross-section | 0,82 bis 2,08 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
