Unit Price (€ / pc.)
0.2451 € *
Available: 0 pcs.
Available in 5 Days: 17,500 pcs.
Leadtime: 15 Weeks **
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
400 pcs.
0.2451 €
2100 pcs.
0.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale

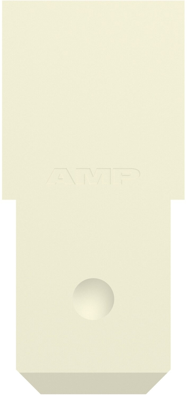

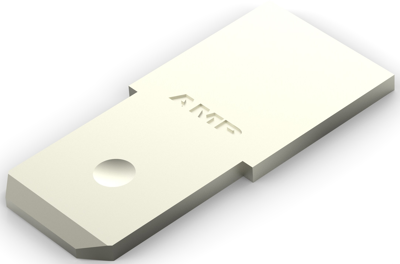

Quick disconnect, 42559-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Nickel, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Steel, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.3 mm, Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 250 °C, UL Rating: Recognized, Packaging Quantity: 1000, Quick Disconnect Packaging Method: Loose Piece/Carton, Comment: Dimple (both sides).
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 16.13 mm | |
| Material | steel, nickel-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
