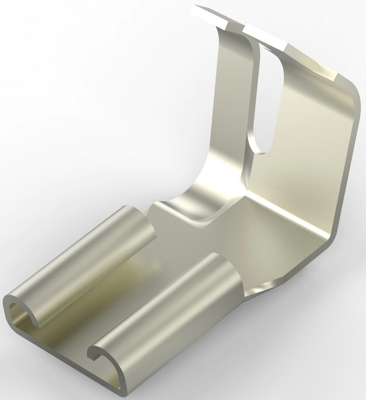

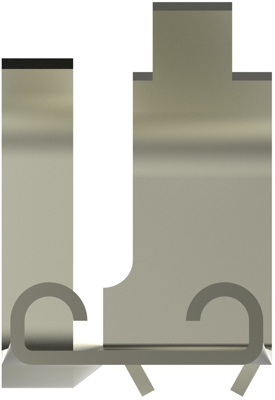

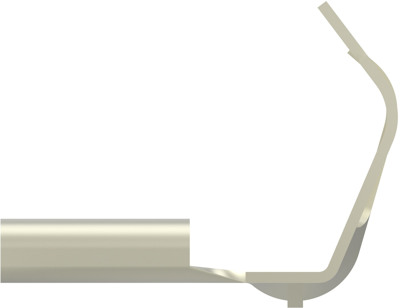

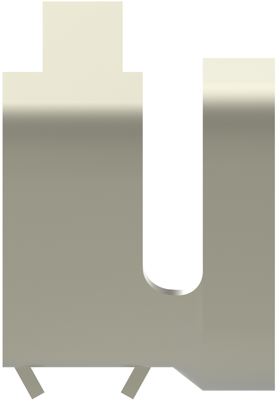

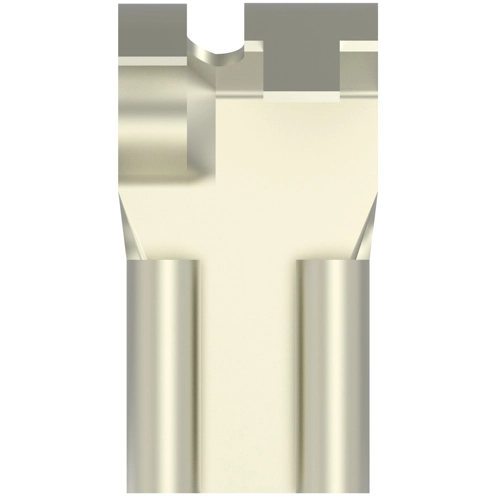

42563-9 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 3.31 to 5.26 mm², AWG 12 to 10, steel, nickel-plated, 42563-9
Unit Price (€ / pc.)
0.1511 € *
Available: 0 pcs.
Available in 5 Days: 21,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
3500 pcs.
0.1511 €
7000 pcs.
0.1428 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 42563-9, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Steel, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 12 – 10 AWG, Wire Size: 3.31 – 5.26 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 250 °C, Packaging Quantity: 3500, Quick Disconnect Packaging Method: Strip/Reel, Line: Premier
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 12 to 10 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 17.02 mm | |
| Cable cross-section | 3.31 to 5.26 mm² | |
| Material | steel, nickel-plated |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
