42565-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 1.31 mm², AWG 18 to 16, brass, tin-plated, 42565-2

Order No.: 34P7677
EAN: 4099889619492
MPN:
42565-2
Series: FASTIN-FASTON
AMP

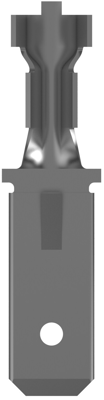

42565-2 AMP Receptacles Image 1

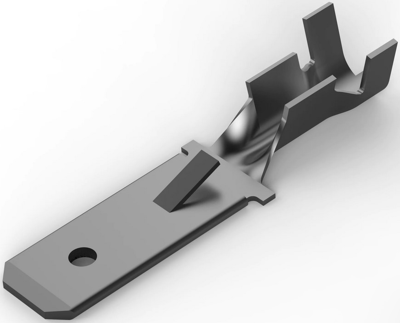

42565-2 AMP Receptacles Image 2

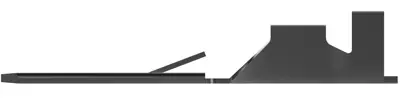

42565-2 AMP Receptacles Image 3

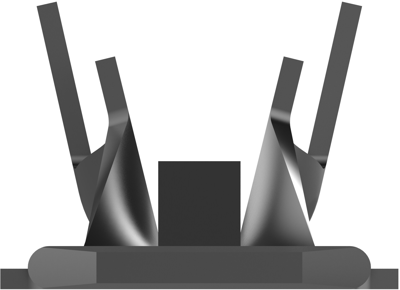

42565-2 AMP Receptacles Image 4

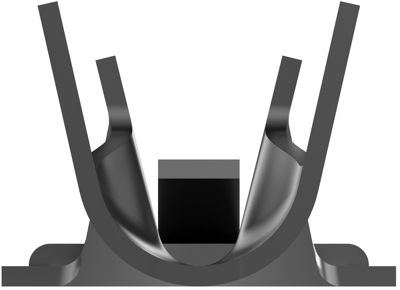

42565-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2594 € *
Available: 0 pcs.
Available in 5 Days: 20,845 pcs.
Leadtime: 24 Weeks **
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
350 pcs.
0.2594 €
2000 pcs.
0.2166 €
*incl. VAT plus shipping costs
**Subject to prior sale

Quick disconnect, 42565-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 16 AWG, Wire Size: 0.82 – 1.31 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 1000, Quick Disconnect Packaging Method: Loose Piece/Carton

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 18 to 16
Suitable for 6.35 x 0.81 mm
Isolated No
Length 28.12 mm
Cable cross-section 0.82 to 1.31 mm²
Material brass, tin-plated
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
