42599-2 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.26 to 0.96 mm², AWG 22 to 18, brass, tin-plated, red, 42599-2

Order No.: 38P7556
EAN: 4099889628845
MPN:
42599-2
Series: FASTON
AMP

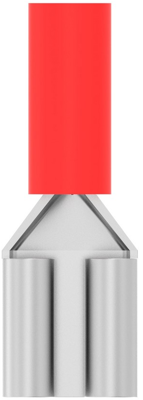

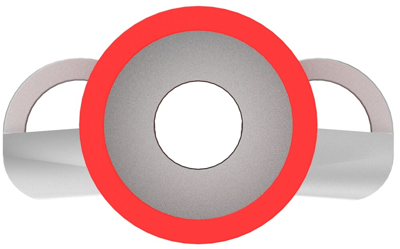

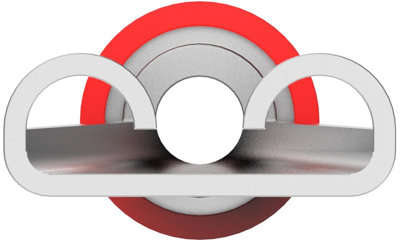

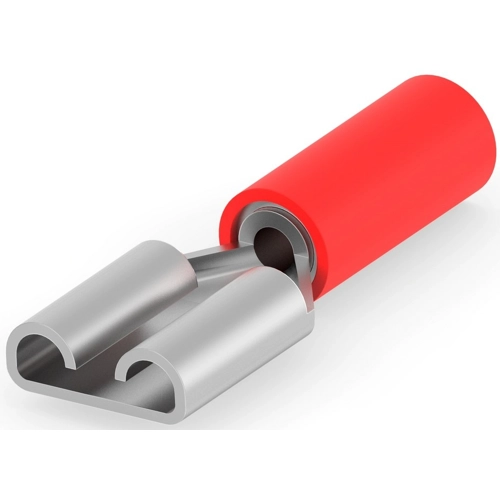

42599-2 AMP Receptacles Image 1
42599-2 AMP Receptacles Image 2
42599-2 AMP Receptacles Image 3
42599-2 AMP Receptacles Image 4
42599-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Available in 5 Days: 850 pcs.
Leadtime: 91 Weeks **
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
157 pcs.
0.5593 €
2500 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale

Quick disconnect, 42599-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: PVC, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 22.9 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.26 – .96 mm², Wire Size: 509 – 1900 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Quick Disconnect Packaging Method: Box, Barrel Color: Red

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 22 to 18
Insulation colour red
Suitable for 6.35 x 0.81 mm
Isolated Yes
Length 22.9 mm
Cable cross-section 0.26 to 0.96 mm²
Material brass, tin-plated
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
