42743-1 | AMP

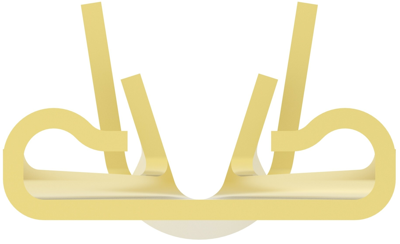

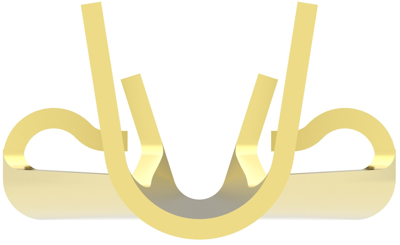

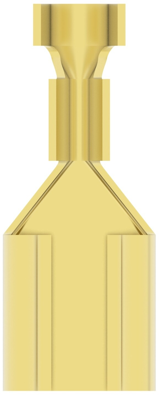

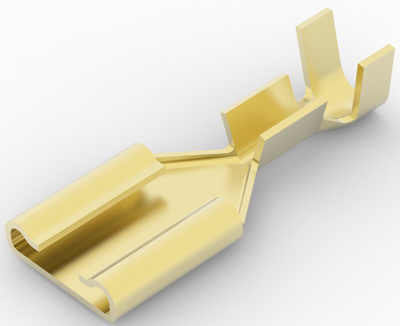

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, 42743-1
Unit Price (€ / pc.)
0.0488 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
1,170.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
0.0488 €
Quick disconnect, 42743-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 12000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 22 bis 18 | |
| Geeignet für | 6,35 x 0,81 mm | |
| Isoliert | No | |
| Länge | 19.18 mm | |
| Leiterquerschnitt | 0,32 bis 0,82 mm² | |
| Material | Messing |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
