42844-2 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 2.0 to 3.0 mm², AWG 14 to 12, phosphor bronze, tin-plated, green, 42844-2

Order No.: 38P7552
EAN: 4099889628807
MPN:
42844-2
Series: FASTON
AMP

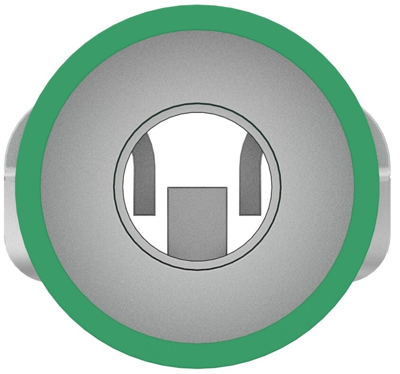

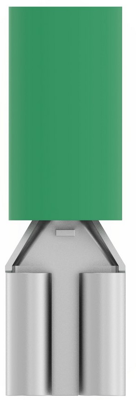

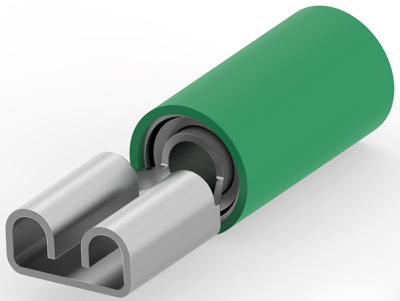

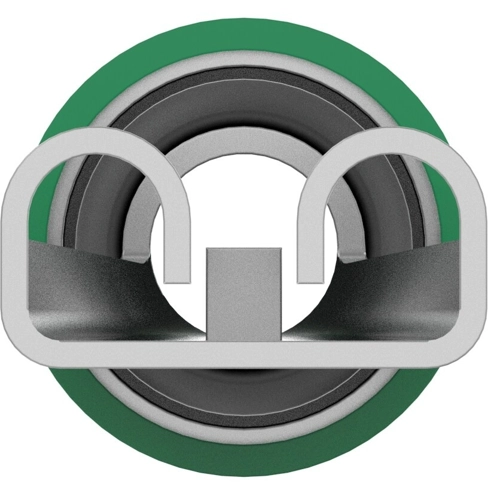

42844-2 AMP Receptacles Image 1
42844-2 AMP Receptacles Image 2
42844-2 AMP Receptacles Image 3
42844-2 AMP Receptacles Image 4
42844-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.9282 €

Quick disconnect, 42844-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: Compression, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 14 – 12 AWG, Wire Size: 2 – 3 mm², Wire Size: 4107 – 6530 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, CSA Certified: No, Packaging Quantity: 500, Quick Disconnect Packaging Method: Loose Piece, Barrel Color: Green

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 14 to 12
Insulation colour green
Suitable for 6.35 x 0.81 mm
Isolated Yes
Length 25.7 mm
Cable cross-section 2.0 to 3.0 mm²
Material phosphor bronze, tin-plated
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
