5-160446-5 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, tin-plated, 5-160446-5

Order No.: 07F6202
EAN: 4099889618877
MPN:
5-160446-5
5-0160446-5
Series: FASTIN-FASTON

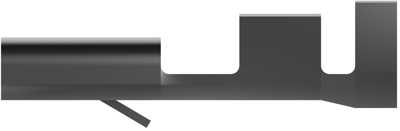

5-160446-5 AMP Receptacles Image 1

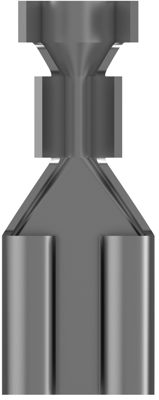

5-160446-5 AMP Receptacles Image 2

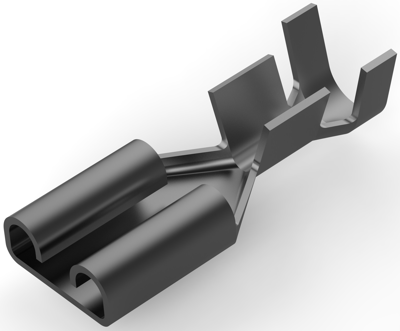

5-160446-5 AMP Receptacles Image 3

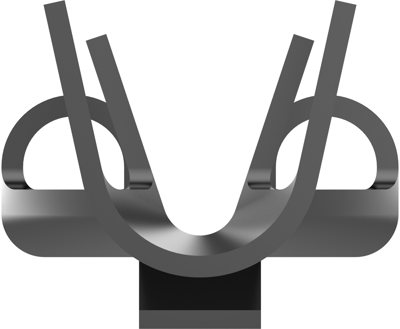

5-160446-5 AMP Receptacles Image 4

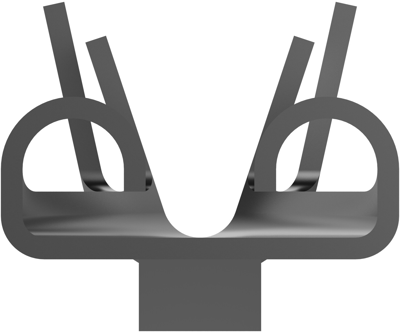

5-160446-5 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2737 € *
Available: 580 pcs.
Leadtime: 23 Weeks **
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2737 €
50 pcs.
0.2451 €
200 pcs.
0.2178 €
500 pcs.
0.1821 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle, 5-160446-5, AMP

Receptacle, 6.3 x 0.8 mm, with catch and chamfer at the insertion zone for crimp connection.

Technical attributes (type, for conductor cross-section, insulation diameter): 5-0160446-5, 1.0 to 2.5 mm², 2.3 to 3.3 mm.

Technical specifications
Connection Crimpanschluss
Version Flachsteckhülse
AWG cross-section AWG 17 bis 13
Suitable for 6,35 x 0,81 mm
Isolated No
Length 19.2 mm
Cable cross-section 1,03 bis 2,62 mm²
Material Messing, verzinnt
Nominal size according to DIN DIN 46340
Logistics
Country of origin SI
Customs tariff number 85369040
Original Packaging Rolle mit 5.000 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
