5-160491-2 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, tin-plated, 5-160491-2

Order No.: 05F4910
EAN: 4099889618242
MPN:
5-160491-2
5-0160491-2
Series: FASTON

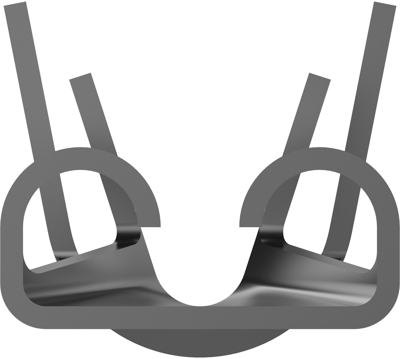

5-160491-2 AMP Receptacles Image 1

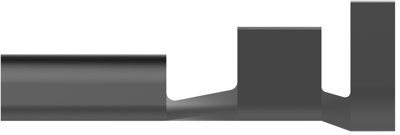

5-160491-2 AMP Receptacles Image 2

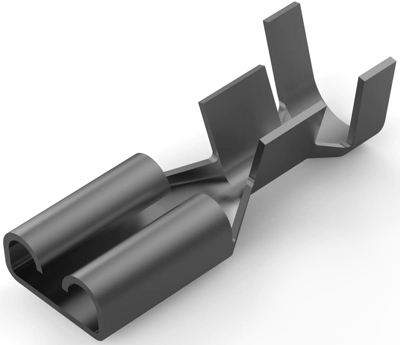

5-160491-2 AMP Receptacles Image 3

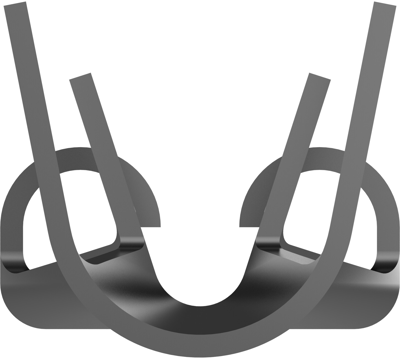

5-160491-2 AMP Receptacles Image 4

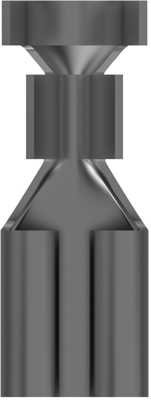

5-160491-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available: 493 pcs.
Next delivery: 4,420 pcs. on 2025-09-19
Available in 5 Days: 270 pcs.
Leadtime: 35 Weeks **
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3094 €
100 pcs.
0.2570 €
500 pcs.
0.2249 €
5000 pcs.
0.1845 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle, 5-160491-2, AMP

Receptacle without insulation, made of brass.

Mating width 4.8 mm, type - 0160.

Mating thickness: 0.8 mm. Dimensions: E 6.3, L 15 mm.

Technical attributes (type, for conductor cross-section, contact finish): 5-0160491-2, 1.0 to 2.5 mm², tinned.

Technical specifications
Connection Crimpanschluss
Version Flachsteckhülse
AWG cross-section AWG 17 bis 13
Suitable for 4,75 x 0,81 mm
Isolated No
Length 16 mm
Cable cross-section 1,03 bis 2,62 mm²
Material Messing, verzinnt
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
