5-160506-1 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, brass, 5-160506-1
Unit Price (€ / pc.)
0.3451 € *
Available: 5,805 pcs.
Leadtime: 5 Weeks **
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3451 €
50 pcs.
0.3213 €
200 pcs.
0.2808 €
500 pcs.
0.2392 €
*incl. VAT plus shipping costs
**Subject to prior sale

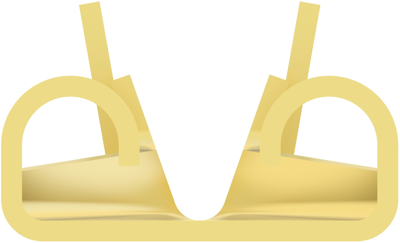

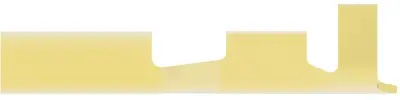

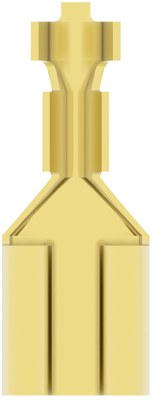

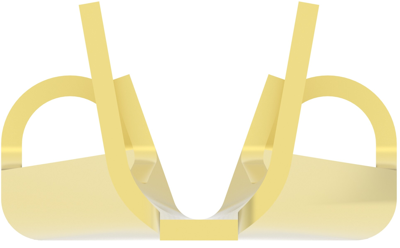

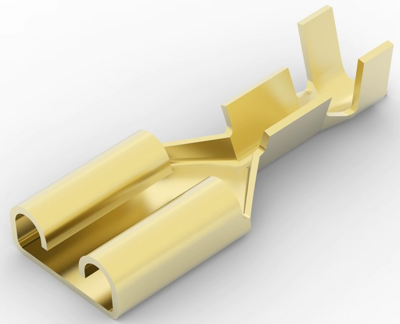

Receptacle without insulation, type TE Connectivity/AMP - 0160../ - 0041.
Made of brass.
Mating width 6.3 mm, type - 0160../ - 0041.
Mating thickness: 0.8 mm. Dimensions: E 7.7, L 19.1 mm.
Technical attributes (type, for conductor cross-section, contact finish): 5-0160506-1, 0.5 to 1.5 mm², bright
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 15 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 20.2 mm | |
| Cable cross-section | 0.51 to 1.65 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
