5-160506-3 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, steel, nickel-plated, 5-160506-3

Order No.: 05F4920
EAN: 4099889618310
MPN:
5-160506-3
5-0160506-3
Series: FASTON

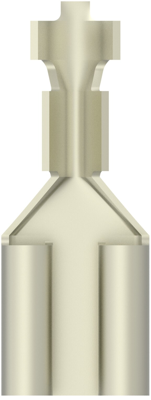

5-160506-3 AMP Receptacles Image 1

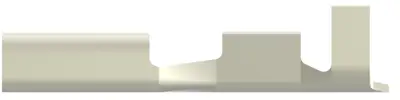

5-160506-3 AMP Receptacles Image 2

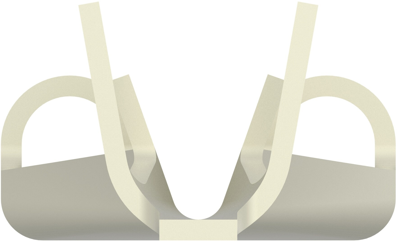

5-160506-3 AMP Receptacles Image 3

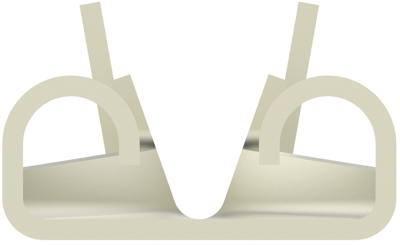

5-160506-3 AMP Receptacles Image 4

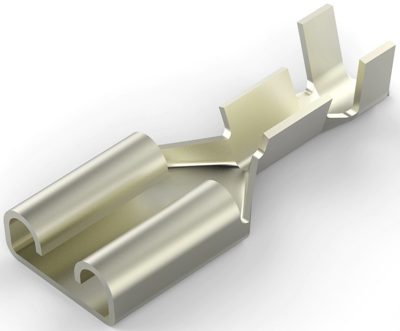

5-160506-3 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1559 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
3,117.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20000 pcs.
0.1559 €

Receptacle, 5-160506-3, AMP

Receptacle without insulation, made of brass.

Mating width 6.3 mm, type - 0160.

Mating thickness: 0.8 mm. Dimensions: E 7.7, L 19.1 mm.

Technical attributes (type, for conductor cross-section, contact finish): 5-0160506-3, 0.5 to 1.5 mm², nickel-plated.

Technical specifications
Connection Crimpanschluss
Version Flachsteckhülse
AWG cross-section AWG 20 bis 15
Suitable for 6,35 x 0,81 mm
Isolated No
Length 20.2 mm
Cable cross-section 0,51 bis 1,65 mm²
Material Stahl, vernickelt
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
