521087-1 | AMP
Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, steel, nickel-plated, black, 521087-1
Order No.: 35P4589
EAN: 4099889627992
MPN:
521087-1
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: On Request **

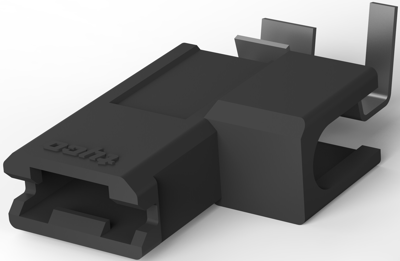

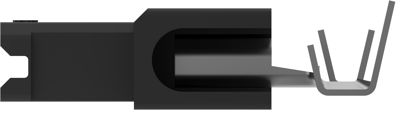

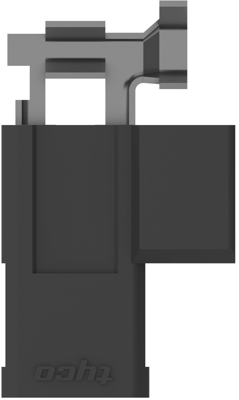

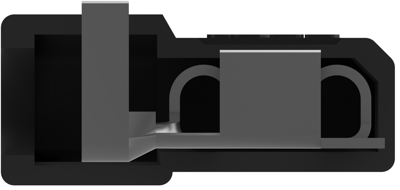

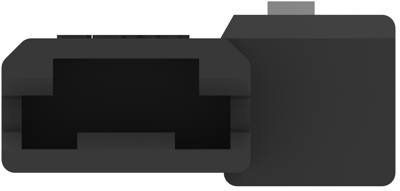

Flat receptacle, 521087-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Steel, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 150 °C, UL Rating: Listed, Packaging Quantity: 1800, Packaging Method: Strip/Reel, Barrel Color: Black
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 18 to 14 | |
| Insulation colour | black | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | Yes | |
| Length | 22.99 mm | |
| Cable cross-section | 0.82 to 2.08 mm² | |
| Material | steel, nickel-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
