6-160448-3 | AMP

Name: Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, phosphor bronze, silver-plated, 6-160448-3
Brand: AMP
SKU: 72P0307
Price: 0.31 EUR
Availability: OutOfStock

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, phosphor bronze, silver-plated, 6-160448-3

Order No.: 72P0307

EAN: 4099891713638

MPN:

6-160448-3

Series: FASTIN-FASTON 250

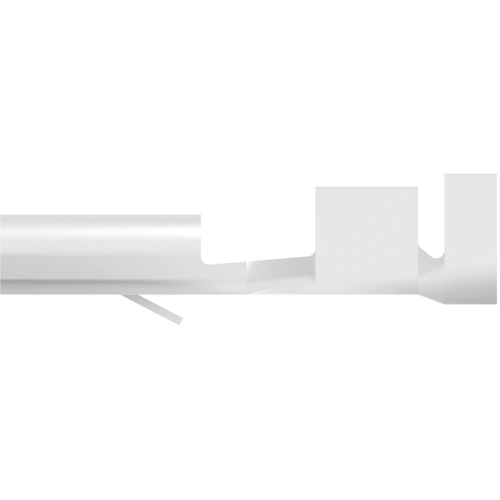

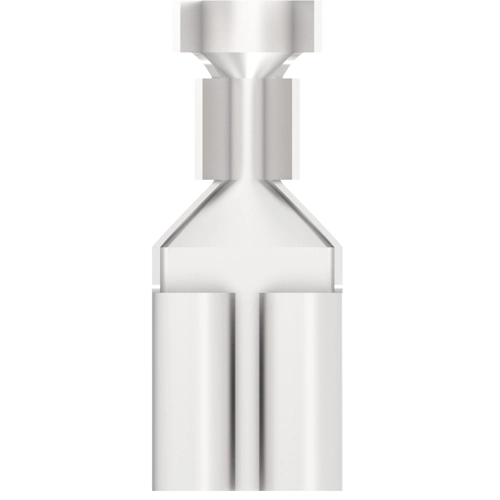

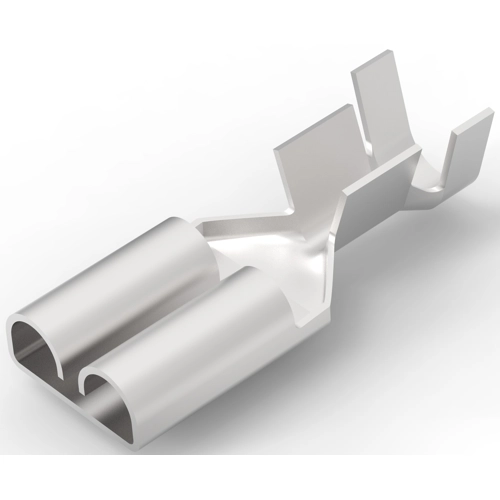

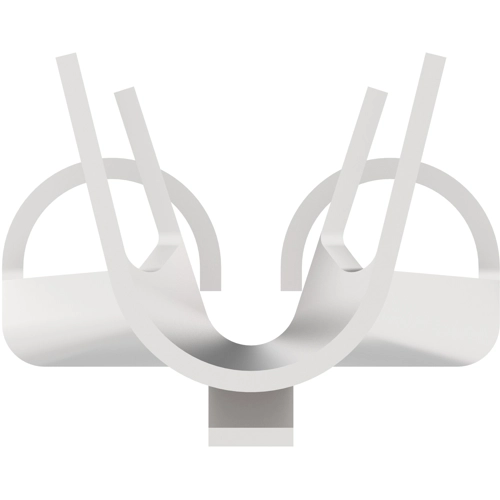

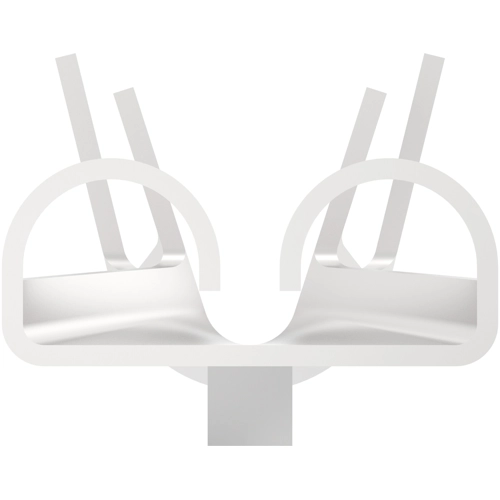

Image may differ

Key Specification:

Version flat plug sleeve

Suitable for 6.35 x 0.81 mm

Material phosphor bronze, silver-plated

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3094 € *

Available: 0 pcs.

Available in 5 Days: 378,360 pcs.

Leadtime: 26 Weeks **

Add to Cart

Total Price:

0.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Plug sleeve, 6-160448-3, AMP

Quick disconnect, Receptacle, 17-13 AWG Wire size, 1.03-2.62 mm² Wire size, Mating tab width 6.35 mm, Straight.

Technical specifications

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 17 to 13
	Suitable for	6.35 x 0.81 mm
	Isolated	No
	Length	19.2 mm
	Cable cross-section	1.03 to 2.62 mm²
	Material	phosphor bronze, silver-plated
